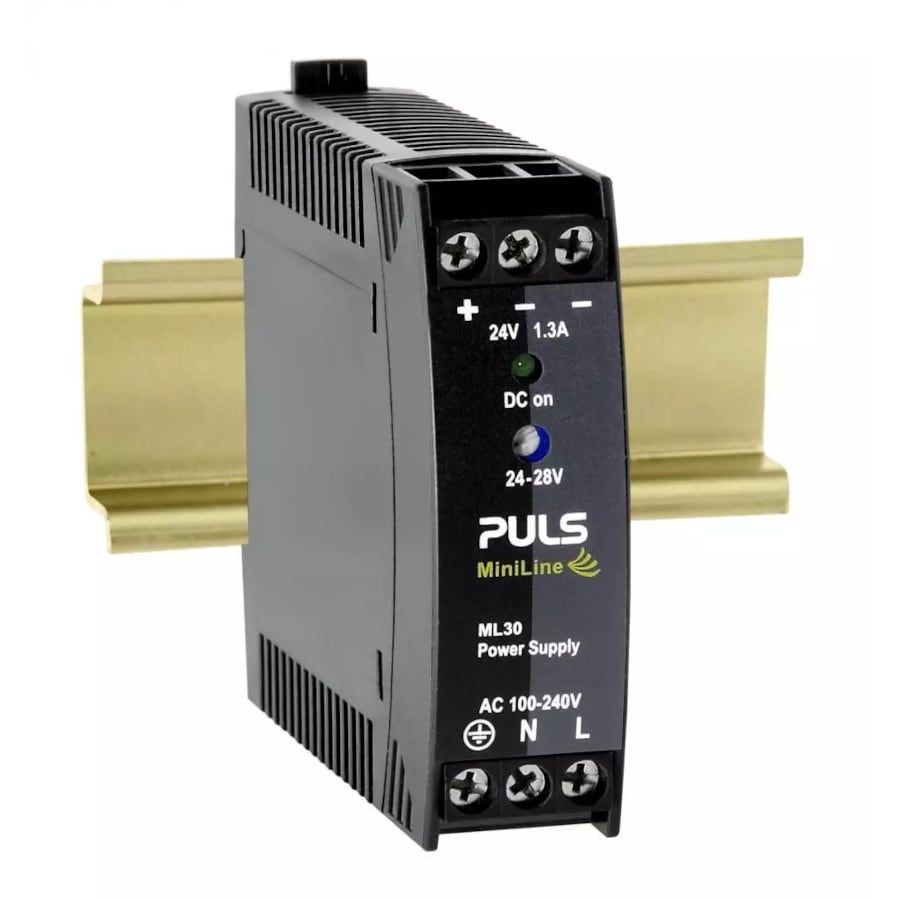

Puls - Puls MiniLine Power supply 24V DC 1.3A - ML30.241

£53.73

/ each

£53.73

Delivery

Essential specifications

Voltage type of supply voltage - AC/DC
Max. output current 1 - 1.3 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes

Packaging

1 each

GTIN

Supplier Ref

ML30.241

Manufacturer Ref

ML30.241

Commercial Reference

ML30.241

Voltage type of supply voltage:

AC/DC

Max. output current 1:

1.3 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

100...240 V

Rated supply voltage at DC:

24...28 V

Power output:

30 W

Type of electric plug connection:

Screw connection

Rail mounting possible:

yes

Suitable for wall mounting:

Suitable for DIN installation panels:

yes

Direct mounting possible:

Width:

23 mm

Height:

75 mm

Depth:

91 mm

IP-rating:

IP20

Puls MiniLine Power supply 24V DC 100-240V AC Input 1.3A DIN Rail Mounted. The MiniLine family covers DIN rail power supplies for low and medium power range from 15W to 100W. The units, in their rugged plastic housing are highly efficient, compact, reliable and can be installed in seconds.
