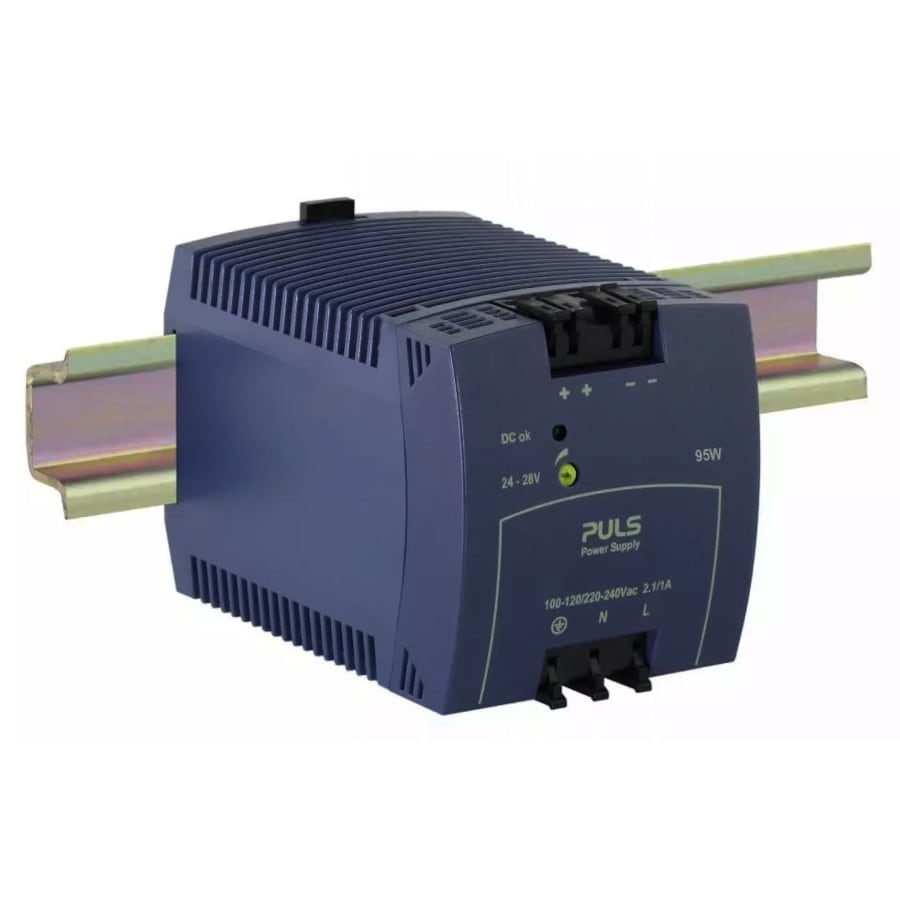

Puls - Puls MiniLine Power supply 24V DC 3.8A - ML95.100
/ each
£145.86
Delivery
Essential specifications
Voltage type of supply voltage - AC/DC
Max. output current 1 - 3.9 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes
Packaging
1 each
GTIN
Supplier Ref
ML95.100
Manufacturer Ref
ML95.100
Commercial Reference
ML95.100
Voltage type of supply voltage:
AC/DC
Max. output current 1:
3.9 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
115...230 V
Rated supply voltage at DC:
24...28 V
Power output:
95 W
Type of electric plug connection:
Spring clamp connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
73 mm
Height:
75 mm
Depth:
103 mm
IP-rating:
IP20
Puls MiniLine Power supply 24V DC 100-120/200-240V AC Input 3.8A DIN Rail Mounted. The MiniLine family covers DIN rail power supplies for low and medium power range from 15W to 100W. The units, in their rugged plastic housing are highly efficient, compact, reliable and can be installed in seconds.
- 115 / 230V Auto-select input
- Efficiency up to 90%
- NEC Class 2 Listed
- Full output power between -10 and +60°C
- Quick-connect spring-clamp terminals
