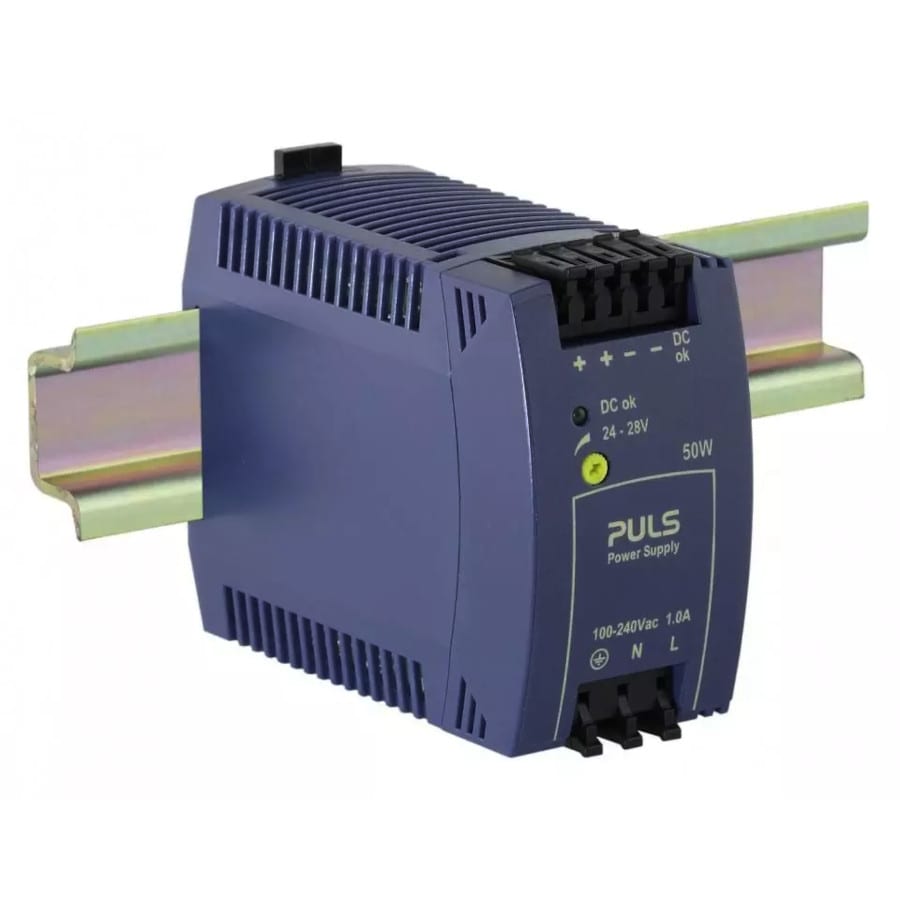

Puls - Puls MiniLine Wide Range Power supply 24V DC 2A - ML50.100
/ each
£89.70
Delivery
Essential specifications
Voltage type of supply voltage - AC/DC
Max. output current 1 - 2.1 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes
Packaging
1 each
GTIN
7540400007
Supplier Ref
ML50.100
Manufacturer Ref
ML50.100
Commercial Reference
ML50.100
Voltage type of supply voltage:
AC/DC
Max. output current 1:
2.1 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
100...240 V
Rated supply voltage at DC:
24...28 V
Power output:
50 W
Type of electric plug connection:
Spring clamp connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
45 mm
Height:
75 mm
Depth:
91 mm
IP-rating:
IP20
Puls MiniLine Wide Range Power supply 24V DC 100-240V AC Input 2A DIN Rail Mounted. The MiniLine family covers DIN rail power supplies for low and medium power range from 15W to 100W. The units, in their rugged plastic housing are highly efficient, compact, reliable and can be installed in seconds.
- 100-240V Wide-range input
- Efficiency up to 89%
- SEMI-F47-200 approved
- DC-OK signal output
- Full output power between -10 and +60°C
- Quick-connect spring-clamp terminals Adapter for Wall Mounting includet
