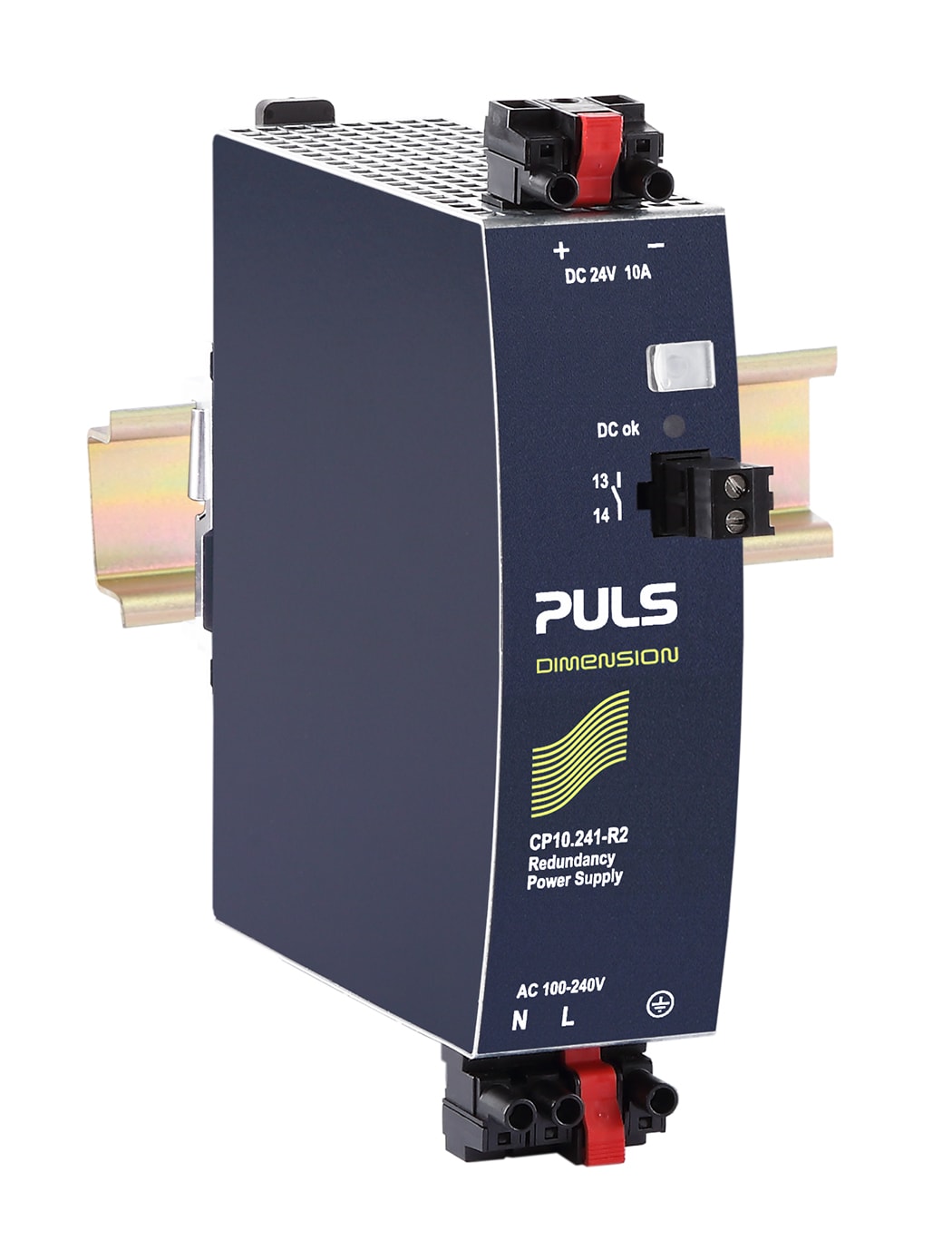

Puls - Redun. PS 24-28Vdc 10A 100-240Vac - CP10.241-R2

Voltage type of supply voltage:

AC/DC

Max. output current 1:

10 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

100...240 V

Rated supply voltage at DC:

24...28 V

Power output:

240 W

Type of electric plug connection:

Screw connection

Rail mounting possible:

yes

Suitable for wall mounting:

no

Suitable for DIN installation panels:

yes

Direct mounting possible:

no

Width:

39 mm

Height:

124 mm

Depth:

117 mm

IP-rating:

IP20
