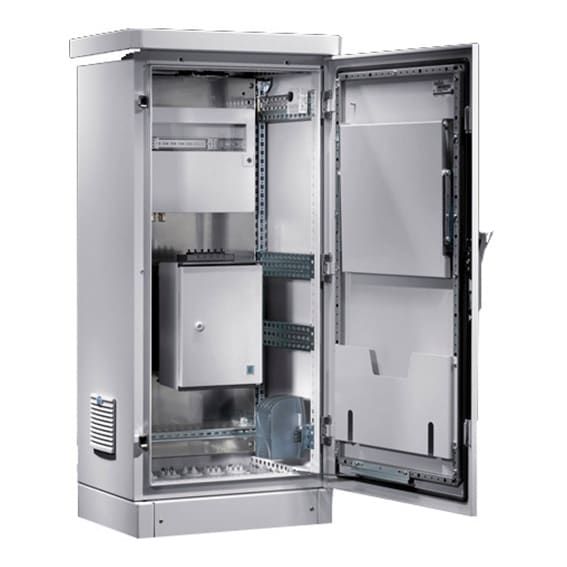

Rittal - CS NewBasic WHD 800 x 1200 x 500 IP55 - 9783610
/ each
£994.03
Delivery
Essential specifications
Width - 800 mm
Height - 1200 mm
Depth - 500 mm
Material - Aluminium
Colour - Grey
Packaging
1 each
GTIN
Supplier Ref
9783610
Manufacturer Ref
9783610
Commercial Reference
9783610
Width:
800 mm
Height:
1200 mm
Depth:
500 mm
Material:
Aluminium
Colour:
Grey
Material quality:
Other
Type of surface:
Powder coated
RAL-number:
7035
Couplable:
no
Mounting plate depth-adjustable:
no
Number of doors:
1
With glazed door:
no
With ventilation door:
no
With rear door:
no
Number of locks:
1
Suitable for outdoor installation:
yes
EMC-version:
no
IP-rating:
IP55
CS Basic enclosure, 800mm width, 1200mm height, 100mm height (base/plinth), 1355mm height (mounted), 500mm depth, 712mm clearance width, 1112mm clearance height, 449mm clearance depth, 850mm rain canopy width, 55mm rain canopy height, 550mm rain canopy depth, number of doors 1, outdoor enclosure with 100mm transport plinth and rain canopy with projections on all sides, aluminium AlMg3, powder-coated UV-resistant pure polyester, RAL 7035, IP55, NEMA 3R, supply includes single-walled outdoor enclosure, fully preconfigured, basic enclosure with open base, transport plinth with screw-fastened trim panels front and rear 25mm system punchings in the roof, base, front and in the enclosure depth, front door with door stay, swing lever handle and semi-cylinder, lock BJ 20027 Rain canopy, 49.5kg weight, packs of 1pc
