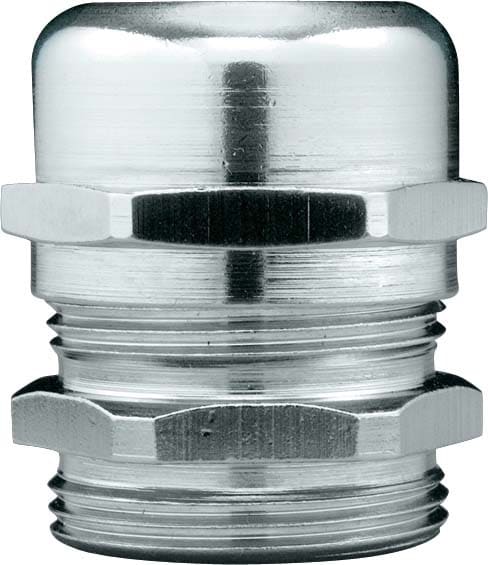

Rittal - EMC CABLE GLANDS METRIC M20 PACK 5 - 2843200

Thread type:

Metric

Nominal thread size metric/PG:

20

Suitable for cable diameter:

6...12 mm

Material:

Metal

IP-rating:

IP68

Pitch thread:

1.41 mm

Thread length:

6 mm

Wrench width:

17 mm

Hexagon angular dimension:

17 mm

Halogen free:

no

Glass-fibre reinforced:

no

Shock resistant:

yes

Bend radius protection/trumpet flare:

no

With locknut:

yes

Model:

Straight

Multi seal area:

no

Flat cable coupling:

no

Strain relief:

no

Type of sealing:

Sealing ring

Separable screw gland:

no

Operating temperature:

0...50 °C

Explosion-tested version:

no

For Ex-zone gas:

None

For ATEX classification, Ex-zone dust:

None
