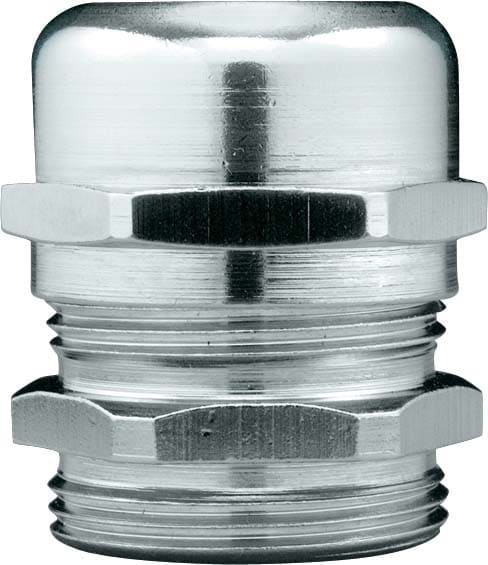

Rittal - SZ EMC CABLE GLANDS M 25 PK=5 - 2843250

Thread type:

Metric

Nominal thread size metric/PG:

25

Suitable for cable diameter:

25...25 mm

Material:

Metal

IP-rating:

IP68

Nominal thread size inch/gas pipe thread:

Other

Pitch thread:

1.41 mm

Thread length:

6 mm

Wrench width:

17 mm

Hexagon angular dimension:

17 mm

Material quality:

Other

Surface treatment:

Other

Halogen free:

no

Glass-fibre reinforced:

no

Shock resistant:

yes

Colour:

Other

Bend radius protection/trumpet flare:

no

With locknut:

yes

Model:

Other

Multi seal area:

no

Flat cable coupling:

no

Strain relief:

no

Type of sealing:

Sealing ring

Separable screw gland:

no

Operating temperature:

0...50 °C

Explosion-tested version:

no

For Ex-zone gas:

None

For ATEX classification, Ex-zone dust:

None
