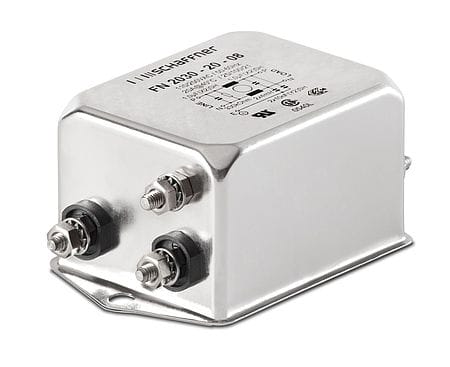

Schaffner - 1 Phase General Purpose High Attenuation - FN2030-20-08

Single Phase General Purpose High Attenuation Filter. 20A. 250V AC. M4 screw. Chassis mounting

• FN 2030 filters are designed for easy and fast chassis mounting

• The FN 2030 filters are also available as B versions with no Y-capacitors for medical applications as well as A versions with low capacitance for safety critical applications with a requirement for low leakage currents

• All filters provide an exceptional conducted attenuation performance, based on chokes with high permeable core material and excellent thermal behavior

• The higher inductivity versus amperage offers increased attenuation performance with same form factor compared to FN 2010 and FN 2020 filter series

• All FN 2030 filters can be delivered with optional surge pulse protection. FN 2030 filters are also available as two- stage filters (FN 2090 series) for very noisy environment

• Various terminal options allow you to select the desired connection style
