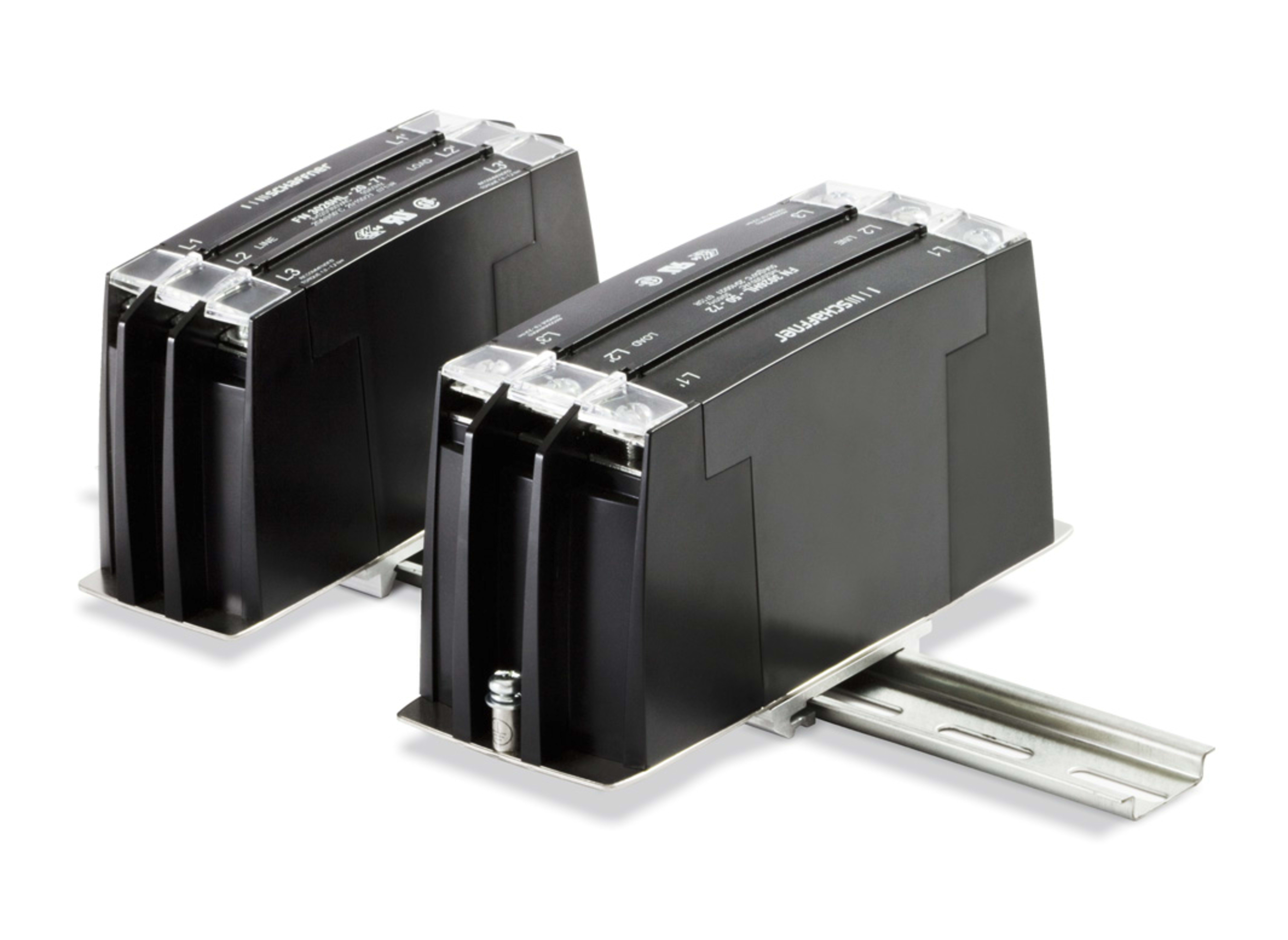

Schaffner - 3~Plastic Housing Ftr 520V,DIN Rail Mnt - FN3026HL-50-72
£113.75
/ each
£113.75
1
Delivery
Number of available items for delivery:0
Essential specifications
Number of poles, primary side - 3
Max. rated operation voltage Ue - 300 V
Rated current at AC - 10...50 A
Max. rated current (Ith) at rated voltage DC - 50 A
IP-rating - IP20
Packaging
1 each
GTIN
7612774464303
Supplier Ref
FN3026HL-50-72
Manufacturer Ref
FN3026HL-50-72
Commercial Reference
FN3026HL-50-72
Number of poles, primary side:
3
Max. rated operation voltage Ue:
300 V
Rated current at AC:
10...50 A
Max. rated current (Ith) at rated voltage DC:
50 A
IP-rating:
IP20
Suitable as sinus filter:
no
Suitable as du/dt-filter:
no
Suitable as radio interference suppression filter:
no
Suitable as audio frequency blockage:
no
Rated operation frequency:
0...60 Hz
3 Phase Plastic Housing Filter 520VAC, DIN Rail Mount, 50A
- Two different mounting versions: FN 3025 for chassis mounting and FN3026 for DIN rail mounting.
- Two different performance levels (L types, P types)
- A plastic housing and a metal ground plate are cleverly combined to get the lowest possible product weight without compromizing EMC behavior
- The embedded jump-terminal system from Schaffner guarantees user-friendly handling as well as fast and reliable electrical connection
- Captive hinged protective covers contribute to overall safety by offering protection against unintended contact with life conductors. They are
- included in the standard delivery package without causing extra cost
- Very low leakage current values make these filter ranges ideally suitable for use in Japanese electricity networks as well as in applications which set value
- on safety and reliability
Schaffner
