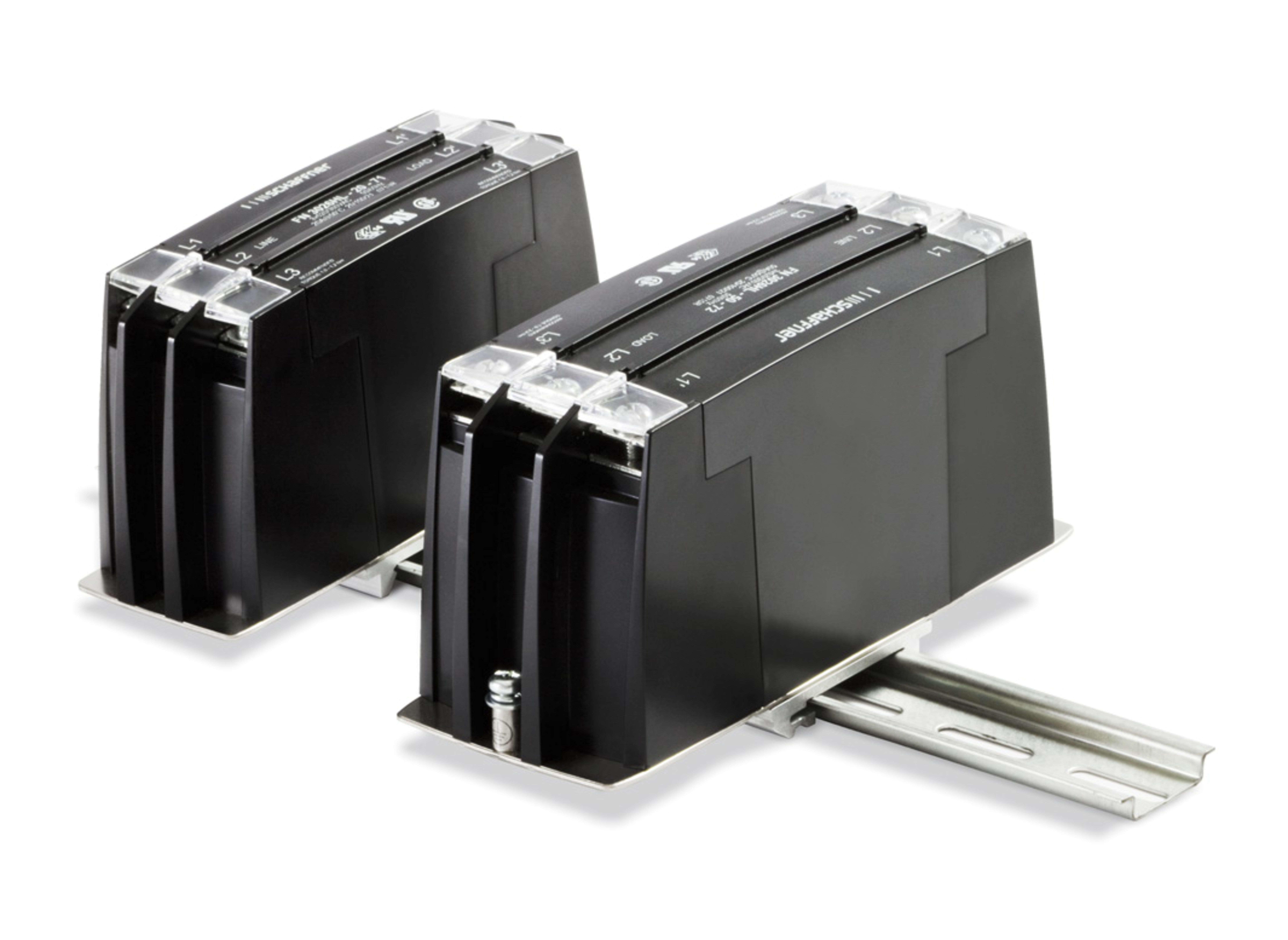

Schaffner - 3 ~ Plastic HousingFtr 520V,DIN Rail 20A - FN3026HP-20-71
/ each
£108.28
Delivery
Essential specifications
Number of poles, primary side - 3
Max. rated operation voltage Ue - 300 V
Rated current at AC - 10...50 A
Max. rated current (Ith) at rated voltage DC - 20 A
IP-rating - IP20
Packaging
1 each
GTIN
7612774464501
Supplier Ref
FN3026HP-20-71
Manufacturer Ref
FN3026HP-20-71
Commercial Reference
FN3026HP-20-71
Number of poles, primary side:
3
Max. rated operation voltage Ue:
300 V
Rated current at AC:
10...50 A
Max. rated current (Ith) at rated voltage DC:
20 A
IP-rating:
IP20
Suitable as sinus filter:
no
Suitable as du/dt-filter:
no
Suitable as radio interference suppression filter:
no
Suitable as audio frequency blockage:
no
Rated operation frequency:
0...60 Hz
3 Phase Plastic Housing Filter 520VAC, DIN Rail Mount, 20A, High Performance
- Two different mounting versions: FN 3025 for chassis mounting and FN3026 for DIN rail mounting.
- Two different performance levels (L types, P types)
- A plastic housing and a metal ground plate are cleverly combined to get the lowest possible product weight without compromizing EMC behavior
- The embedded jump-terminal system from Schaffner guarantees user-friendly handling as well as fast and reliable electrical connection
- Captive hinged protective covers contribute to overall safety by offering protection against unintended contact with life conductors. They are
- included in the standard delivery package without causing extra cost
- Very low leakage current values make these filter ranges ideally suitable for use in Japanese electricity networks as well as in applications which set value
- on safety and reliability
