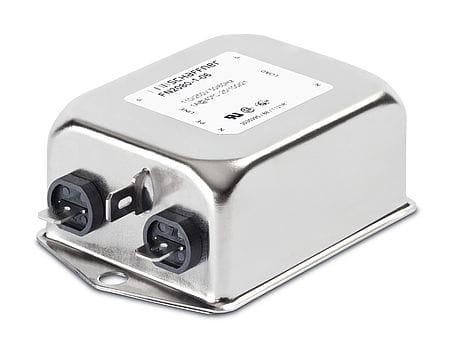

Schaffner - Chassis Mnt VHiPerf - FN2080-6-06
£34.07
/ each
£34.07
1
Delivery
Number of available items for delivery:0
Essential specifications
Number of poles, primary side - 2
Max. rated operation voltage Ue - 250 V
Rated current at AC - 1...30 A
Max. rated current (Ith) at rated voltage DC - 6 A
IP-rating - IP00
Packaging
1 each
GTIN
Supplier Ref
FN2080-6-06
Manufacturer Ref
FN2080-6-06
Commercial Reference
FN2080-6-06
Number of poles, primary side:
2
Max. rated operation voltage Ue:
250 V
Rated current at AC:
1...30 A
Max. rated current (Ith) at rated voltage DC:
6 A
IP-rating:
IP00
Suitable as sinus filter:
no
Suitable as du/dt-filter:
no
Suitable as radio interference suppression filter:
no
Suitable as audio frequency blockage:
no
Rated operation frequency:
0...400 Hz
Single Phase Chassis Mount Filter 250VAC, 6A, 2-Stage LF, Faston
- FN 2080 two-stage filters are designed for easy and fast chassis mounting
- FN 2080 filters are also available as B versions without Y-capacitors for medical applications as well as A version with low capacitance for safety critical applications with necessity for low leakage currents
- All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
- FN 2080 two-stage filters are designed with good low frequency attenuation
- FN 2080 filters are also available as single- stage filters
- Various terminal options allow you to select the desired connection style
