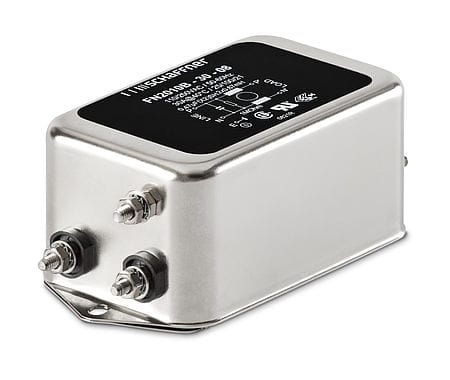

Schaffner - Schaffner Gen Perf Chassis Mount 10A - FN2010-10-06
£10.49
/ each
£10.49
1
Delivery
Number of available items for delivery:0
Essential specifications
Number of poles, primary side - 2
Max. rated operation voltage Ue - 250 V
Rated current at AC - 1...60 A
Max. rated current (Ith) at rated voltage DC - 10 A
IP-rating - IP00
Packaging
1 each
GTIN
Supplier Ref
FN2010-10-06
Manufacturer Ref
FN2010-10-06
Commercial Reference
FN2010-10-06
Number of poles, primary side:
2
Max. rated operation voltage Ue:
250 V
Rated current at AC:
1...60 A
Max. rated current (Ith) at rated voltage DC:
10 A
IP-rating:
IP00
Suitable as sinus filter:
no
Suitable as du/dt-filter:
no
Suitable as radio interference suppression filter:
no
Suitable as audio frequency blockage:
no
Rated operation frequency:
0...400 Hz
Single phase. General purpose filter. 10A. 250V AC. Fast-on connector
- FN 2010 filters are designed for easy and fast chassis mounting
- FN 2010 filters are also available as B versions without Y-capacitors for medical applications as well as A version with low capacitance for safety critical applications with necessity for low leakage currents
- All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
- FN 2010 filters can be used to cover a broad range of usage and they offer a good size/amperage ratio
- FN 2010 filters are also available as two-stage filters (FN 2060, FN 2070 series) for more noisy environment
- Various terminal options allow you to select the desired connection style
