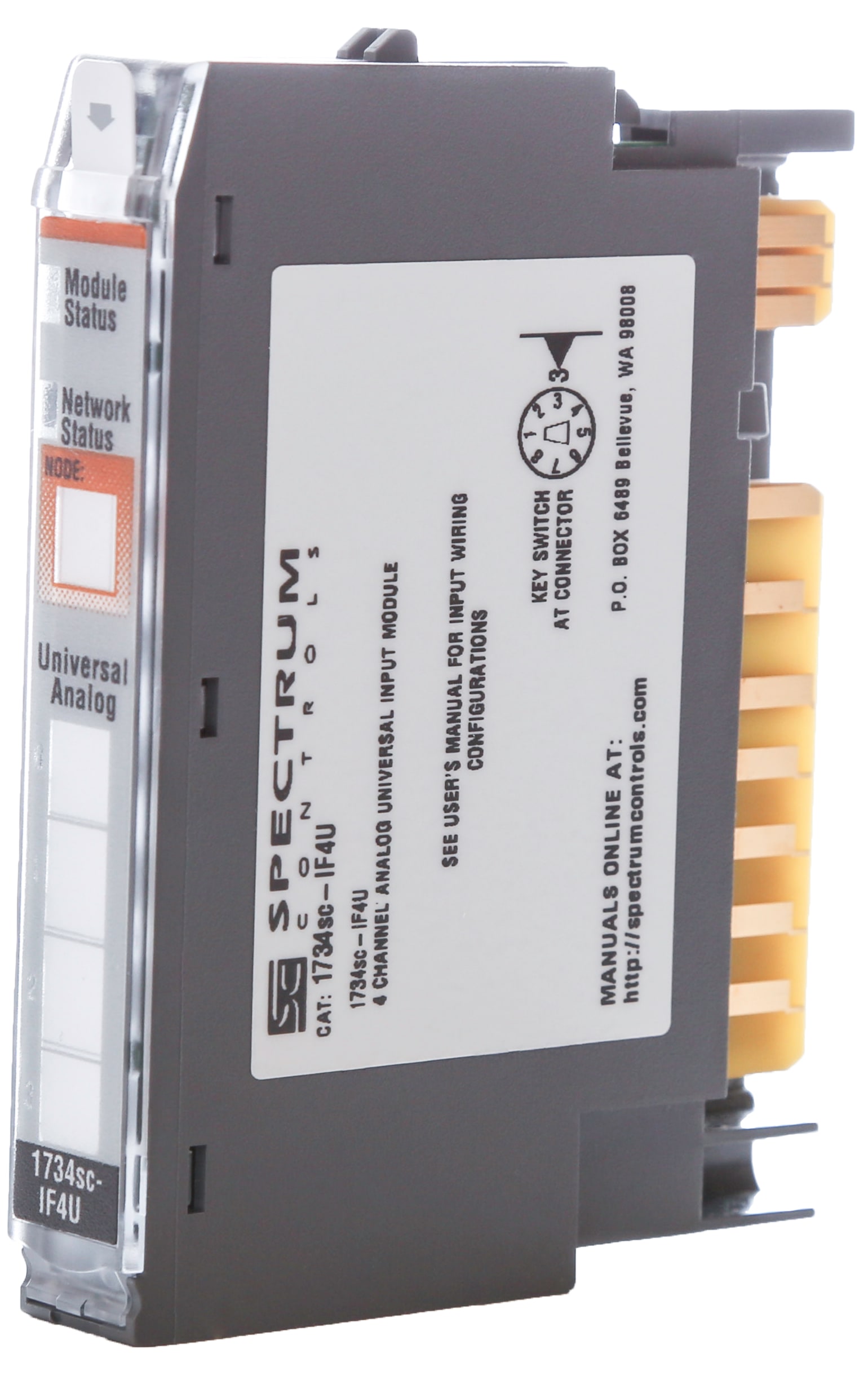

Spectrum Controls - 4-Channel Universal Analog Input Module - 1734SC-IF4U
/ each
£515.70
Delivery
Essential specifications
Number of analogue inputs - 4
Number of analogue outputs - 0
Input, current - yes
Input, voltage - yes
Resolution of the analogue inputs - 16 Bit
Packaging
1 each
GTIN
Supplier Ref
1734SC-IF4U
Manufacturer Ref
1734SC-IF4U
Commercial Reference
1734SC-IF4U
Number of analogue inputs:
4
Number of analogue outputs:
0
Input, current:
yes
Input, voltage:
yes
Resolution of the analogue inputs:
16 Bit
Output, current:
no
Output, voltage:
no
Resolution of the analogue outputs:
0 Bit
Supporting protocol for TCP/IP:
no
Supporting protocol for MODBUS:
no
Supporting protocol for DeviceNet:
no
Supporting protocol for EtherNet/IP:
no
IO link master:
no
1734 Point I/O. The 1734sc-IF4U allows you to easily combine analog inputs from current, voltage, RTD without compromising price or performance. The 1734sc-IF4U reduces system costs by replacing dedicated analog I/O modules with a single universal module. Mix and match input types to maximize rack space and reduce your analog I/O module count. Installation is simplified and costs are reduced by using a common I/O within your system.
- Use any combination of input types at one time.
- Individually programmable for each channel.
- UL/cUL Listed ANSI ISA 12.12.01 (Class I, Div 2, Groups ABCD), CE
