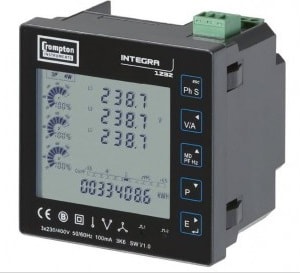

TE Connectivity - INTEGRA 123 Multifunction Digital Meter - INT-1232-S-01
£207.00
/ each
£207.00
1
Delivery
Number of available items for delivery:0
Essential specifications
Ammeter - yes
Blind power meter - no
Frequency meter - yes
Voltmeter - yes
Effective power measurement device - yes
Packaging
1 each
GTIN
Supplier Ref
INT-1232-S-01
Manufacturer Ref
INT-1232-S-01
Commercial Reference
INT-1232-S-01
Ammeter:
yes
Blind power meter:
no
Frequency meter:
yes
Voltmeter:
yes
Effective power measurement device:
yes
Rotational speed meter:
no
Pulse counter:
yes
Voltage type of supply voltage:
AC
Supporting protocol for MODBUS:
yes
Width:
96 mm
Height:
96 mm
Depth:
62 mm
Integra 1232 multifunction panel meter - MID approved. LCD Input 480V L-L, 5A / 1A AC. 2 pulsed outputs, Modbus RS485. Optional Q2C plug and socket connectivity.
- MID approved
- DIN 96 enclosure
- Programmable backlit LCD screen
- Voltage IN-OUT connections
- CT current measurement 5A/1A
- Plug and socket connections
- Programmable VT, CT ratios
- Modbus™ RTU
- 2 pulsed outputs with led indication
- PF bar indicator
- 3P4W, 3P3W, 1P2W system types
- Individual harmonics to 63rd
- Cost effective
- Easy installation
- Q2C wiring solution
