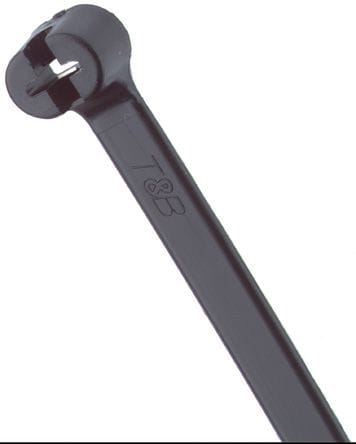

Thomas and Betts - TYRAP STANDARD, - TY24M
/ 1000 each
£0.0761
Delivery
Essential specifications
Band width - 3.56 mm
Length belt/tape/tie - 139.7 mm
Tie thickness - 1.31 mm
Min. tensile strength - 178 N
Operation temperature - -40...85 °C
Packaging
1 each
GTIN
5414363062103
Supplier Ref
TY24M
Manufacturer Ref
TY24M
Commercial Reference
TY24M
Band width:
3.56 mm
Length belt/tape/tie:
139.7 mm
Tie thickness:
1.31 mm
Min. tensile strength:
178 N
Operation temperature:
-40...85 °C
Model:
Internal toothing
Band closure:
Steel nose
Material:
Plastic
Material quality:
Polyamide (PA)
Surface treatment:
Untreated
UV-stable acc. ASTM D6779:
no
Halogen free:
yes
Transparent:
no
Reflective (fluorescent):
no
Text strip:
None
Solvable fastener:
no
Type of fastening:
None
VG approval:
no
MIL approval:
yes
UL approval:
yes
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 139.7mm (5.5 Inches), Width of 3.56mm (0.14 Inches), Thickness of 1.31mm (0.052 Inches), Tensile Strength Rating of 180 Newtons (40 Pounds), Bulk Pack
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
