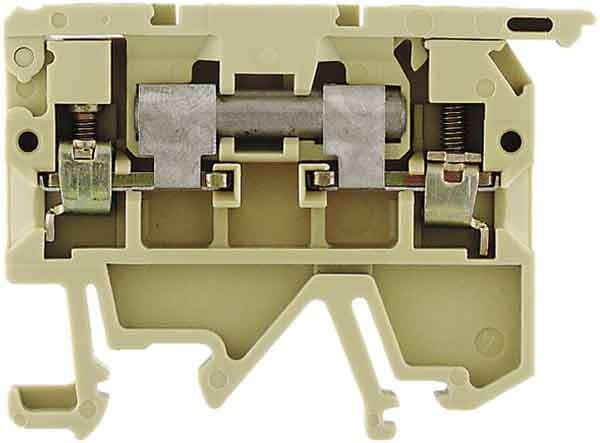

Weidmuller - ASK 1 - 0376760000
/ 100 each
£9.34
Delivery
Essential specifications
Type of fuse insert - G-fuse 5x20 mm
Type of fuse holder - Swivelling
Connectable conductor cross section fine-strand without cable end sleeve - 0.5...4 mm²
Type of electrical connection 1 - Screw connection
Number of levels - 1
Packaging
1 each
GTIN
4008190171346
Supplier Ref
0376760000
Manufacturer Ref
0376760000
Commercial Reference
0376760000
Type of fuse insert:
G-fuse 5x20 mm
Type of fuse holder:
Swivelling
Connectable conductor cross section fine-strand without cable end sleeve:
0.5...4 mm²
Type of electrical connection 1:
Screw connection
Number of levels:
1
Type of indication element for defect indication:
None
Connectable conductor cross section fine-strand with cable end sleeve:
0.5...4 mm²
Connectable conductor cross section solid-core:
0.5...4 mm²
Connectable conductor cross section multi-wired:
1.5...4 mm²
Rated current In:
6.3 A
Rated voltage:
500 V
Type of electrical connection 2:
Screw connection
Mounting method:
G-rail
Material insulation body:
Thermoplastic
Operation temperature:
-50...100 °C
Width:
8 mm
Depth:
58 mm
End plate required:
yes
Colour:
Multi colour
Fuse terminal, Screw connection, Fuse isolator, One end without connector, Screw connection, 4 mm², 500 V, TS 32, beige / yellow
- Klippon® Connect with clamping yoke Technology
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety.
