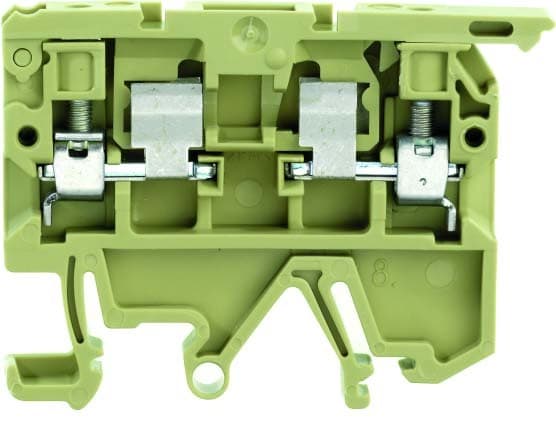

Weidmuller - ASK 1/EN/KOHUE - 0456360000

Type of fuse insert:

G-fuse 5x20 mm

Type of fuse holder:

Swivelling

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

1

Type of indication element for defect indication:

None

Supply voltage for defect-indication:

500...500 V

Voltage type for defect indication:

AC/DC

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...4 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Rated current In:

19 A

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...100 °C

Width:

8.1 mm

Depth:

58 mm

End plate required:

yes

Colour:

Beige
