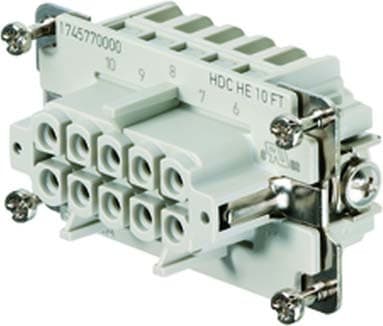

Weidmuller - FEMALE HDC-HE-10BFZ - 1745770000
/ each
£10.84
Delivery
Essential specifications
Contact type - Socket (Female)
Number of poles - 10
Material connector of connector insert - Thermoplastic
Rated current In - 16 A
Ambient temperature - -40...125 °C
Packaging
1 each
GTIN
4008190985493
Supplier Ref
1745770000
Manufacturer Ref
1745770000
Commercial Reference
1745770000
Contact type:
Socket (Female)
Number of poles:
10
Material connector of connector insert:
Thermoplastic
Rated current In:
16 A
Ambient temperature:
-40...125 °C
Rated voltage:
500 V
Rated surge voltage:
6 kV
Pollution degree:
3
Type of electric plug connection:
Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve:
0.5...2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve:
0.5...2.5 mm²
Connectable conductor cross section solid-core:
2.5...0.25 mm²
Material of contact surface:
Silver
Material contact:
Copper
Inflammability class of insulation material acc. with UL94:
V0
With protective conductor:
no
Contact insert (industry plug-in connectors), Female, 500 V, 16 A, No. of poles: 10, Tension clamp connection, Size: 4
- For the tension clamp connection, the wire connection level is designed as a tension clamp element. Thus practically no servicing is required. In addition, a secure and permanent connection is established which is resistant to vibrations. Number of poles: 10
- Rated current: 16 A
- Rated voltage: 500 V
- Nominal voltage acc. to UL/CSA: 600 V AC/DC
- Tension clamp connection
