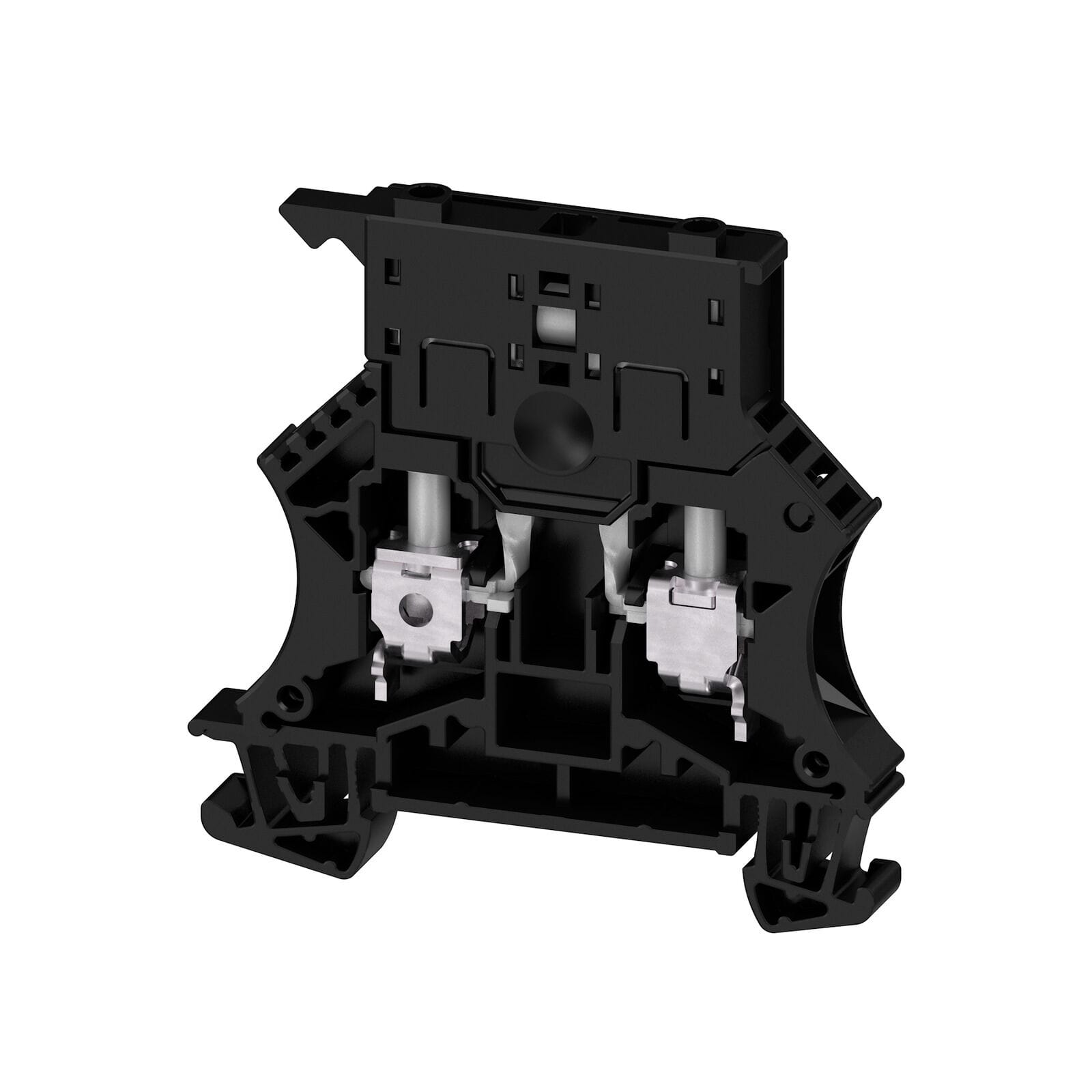

Weidmuller - Fuse Terminal 6 mm 6.3 A 500 V TS35 Black - 1011010000

Type of fuse insert:

G-fuse 5x20 mm

Type of fuse holder:

Swivelling

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...10 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

1

Type of indication element for defect indication:

None

Supply voltage for defect-indication:

500...500 V

Voltage type for defect indication:

AC/DC

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...6 mm²

Connectable conductor cross section solid-core:

0.5...10 mm²

Connectable conductor cross section multi-wired:

1.5...10 mm²

Rated current In:

6.3 A

Rated voltage:

500 V

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

7.9 mm

Height:

60 mm

Depth:

61 mm

End plate required:

yes

Colour:

Black
