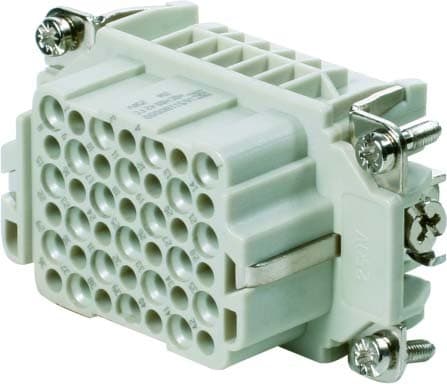

Weidmuller - HDC HDD 42 FC - 1651180000
/ each
£11.08
Delivery
Essential specifications
Contact type - Socket (Female)
Number of poles - 42
Material connector of connector insert - Thermoplastic
Rated current In - 10 A
Ambient temperature - -40...125 °C
Packaging
1 each
GTIN
4008190299781
Supplier Ref
1651180000
Manufacturer Ref
1651180000
Commercial Reference
1651180000
Contact type:
Socket (Female)
Number of poles:
42
Material connector of connector insert:
Thermoplastic
Rated current In:
10 A
Ambient temperature:
-40...125 °C
Rated voltage:
250 V
Rated surge voltage:
4 kV
Pollution degree:
3
Type of electric plug connection:
Crimp connection
Connectable conductor cross section fine-strand without cable end sleeve:
0.14...2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve:
0.5...2.5 mm²
Connectable conductor cross section solid-core:
2.5...0.14 mm²
Material of contact surface:
Silver
Material contact:
Copper
Inflammability class of insulation material acc. with UL94:
V0
With protective conductor:
yes
Contact insert (industry plug-in connectors), Female, 250 V, 10 A, No. of poles: 42, Crimp connection, Size: 4
- The HDD series with machined crimp contacts is designed for high pole counts in tight spaces. Users save installation space with the smaller design, without having to limit the number of poles.
- The wire connection level is designed as a crimp contact. The established crimp connection has been used as a standard for decades. Crimp contacts are not delivered with the inserts.
- Number of poles: 42
- Rated current: 10 A
- Rated voltage: 250 V
- Nominal voltage acc. to UL/CSA: 600 V AC/DC
- Crimp connection
