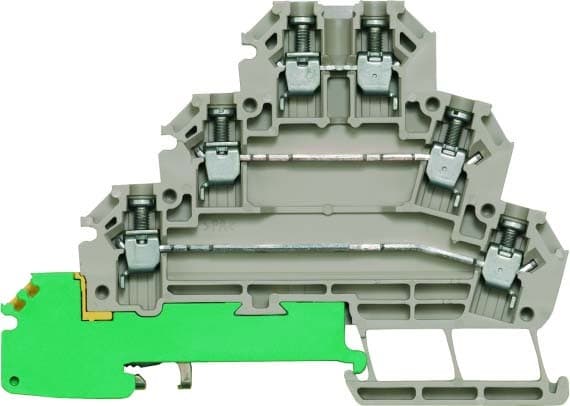

Weidmuller - MAK 2.5 DB - 7917030000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

24 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...4 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Number of levels:

4

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

6.2 mm

Depth:

88 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Beige

Internally connected levels:

no
