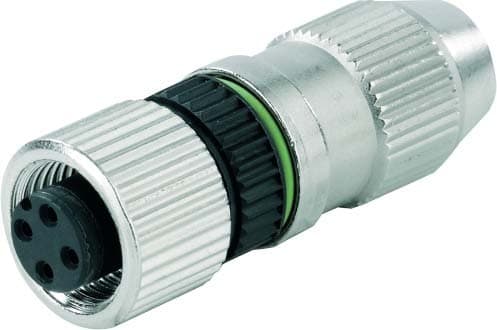

Weidmuller - SAIB-4-IDC-M12 SMALL - 1781540001
£9.54
/ each
£9.54
1
Delivery
Number of available items for delivery:0
Essential specifications
Contact type - Socket (Female)
Thread size metric (M..) - 12
For cable outer diameter - 2.9...5.1 mm
Type of housing - Straight
Type of electric plug connection - Insulation displacement connection
Packaging
1 each
GTIN
4032248430017
Supplier Ref
1781540001
Manufacturer Ref
1781540001
Commercial Reference
1781540001
Contact type:
Socket (Female)
Thread size metric (M..):
12
For cable outer diameter:
2.9...5.1 mm
Type of housing:
Straight
Type of electric plug connection:
Insulation displacement connection
Degree of protection (IP), mounted:
IP67
Shielded:
no
Round plug (field customisable), Female socket, straight, Insulation displacement connection, M12, 0.14 mm², 0.34 mm², 2.9 - 5.1 mm, No. of poles: 4,
- Individual cable lengths are often required nowadays. In order to meet these demands, Weidmüller offers a wide range of plug-in connectors for custom assembly.
- Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8" connections which are highly robust and ideally suited to machine engineering, for instance. The M12 plug-in connectors offer a choice of 5 different connection systems.
- The IDC is simple and quick to assemble since this technology allows the conductor to be inserted directly into the terminal point, without crimping or having to strip the insulation. It also has excellent functional security
