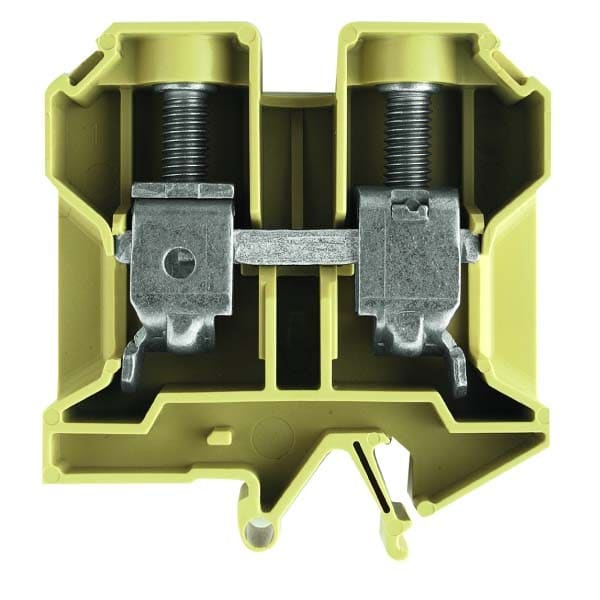

Weidmuller - SAK 35 - 0303560000

Connectable conductor cross section fine-strand without cable end sleeve:

10...35 mm²

Rated current In:

125 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail)/G-rail

Connectable conductor cross section fine-strand with cable end sleeve:

10...35 mm²

Connectable conductor cross section solid-core:

6...16 mm²

Rated voltage:

800 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-50...100 °C

Width:

18 mm

Depth:

58 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Beige

Internally connected levels:

no
