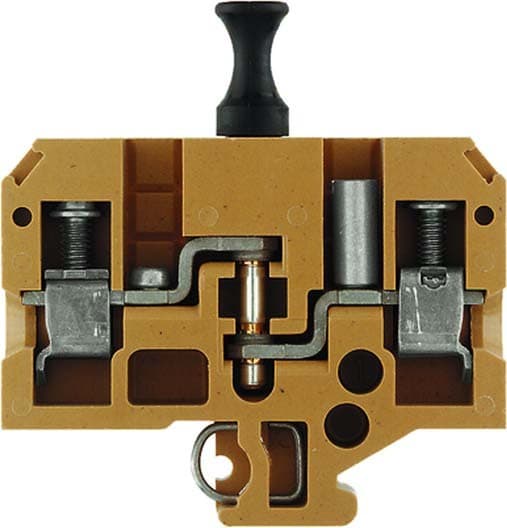

Weidmuller - SAKC 10 2STB - 0324120000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...10 mm²

Rated current In:

26 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail)/G-rail

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...10 mm²

Connectable conductor cross section solid-core:

0.5...10 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Operation temperature:

-60...130 °C

Width:

12 mm

Depth:

65 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Yellow

Internally connected levels:

no
