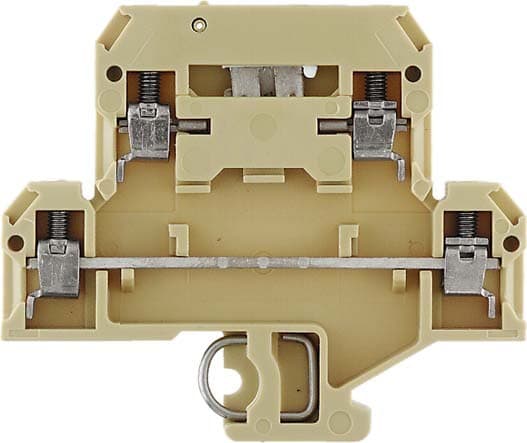

Weidmuller - SAKR BL - 0412180000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

10 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Type of slitting:

Swivelling

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...2.5 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Rated voltage:

400 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Internally connected levels:

no

Mounting method:

G-rail

Material insulation body:

Thermoplastic

Operation temperature:

-50...100 °C

Width:

6.5 mm

Depth:

42 mm

End plate required:

yes

Colour:

Blue

Type of cross disconnection:

None

With integrated test socket:

no
