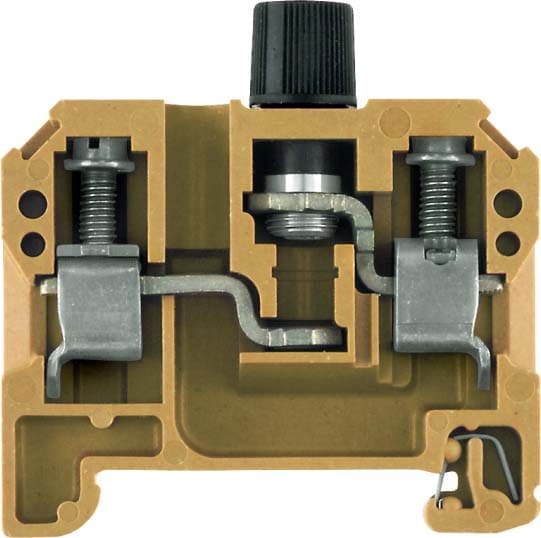

Weidmuller - SAKS 1/35/G25 - 0501520000

Type of fuse insert:

G-fuse 5x25 mm

Type of fuse holder:

Screwable

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...10 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

1

Type of indication element for defect indication:

Glow lamp

Supply voltage for defect-indication:

500...500 V

Voltage type for defect indication:

AC/DC

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...10 mm²

Connectable conductor cross section solid-core:

0.5...16 mm²

Connectable conductor cross section multi-wired:

1.5...10 mm²

Rated current In:

10 A

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Duroplast

Operation temperature:

-60...130 °C

Width:

13 mm

Depth:

54 mm

End plate required:

yes

Colour:

Yellow
