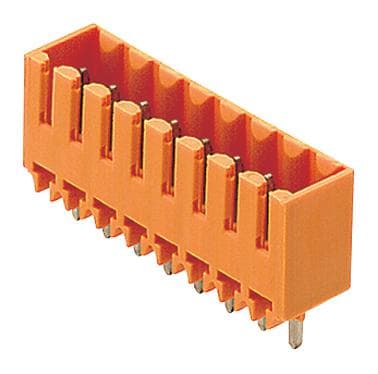

Weidmuller - SL 3.50/11/180G 3.2SN OR BX - 1604560000
/ 50 each
£2.39
Delivery
Essential specifications
Type of connection - Printed circuit board to cable
Contact type - Pin
Number of poles - 11
Modular spacing contacts - 3.5 mm
Rated current In - 12 A
Packaging
1 each
GTIN
Supplier Ref
1604560000
Manufacturer Ref
1604560000
Commercial Reference
1604560000
Type of connection:
Printed circuit board to cable
Contact type:
Pin
Number of poles:
11
Modular spacing contacts:
3.5 mm
Rated current In:
12 A
Connector model:
Other
Number of plug-in contact rows:
1
Modular spacing connections:
3.5 mm
Angle PCB/contact:
90° (upwards vertical)
Rated voltage:
320 V
Rated surge voltage:
2.5 kV
Over voltage category:
II
Pollution degree:
2
Material of contact surface:
Tin
Type of electric plug connection:
Soldering connection
Length pin:
3.2 mm
Material insulation body:
Other
Housing colour:
Orange
Operation temperature:
-50...100 °C
Type of PCB fastening:
Other
Type of fastening:
Solder
Type of banding:
Other
PCB plug connector, closed side, THT solder connection, 3.50 mm, No. of poles: 11, 180°, 3.2 mm, tinned, Orange, Box
- Pin headers for wave soldering in 3.50 mm pitch
- Plugging direction is parallel (90°), straight 180° or angled (135°) to the PCB
- Housing variant: screw flange (F)
- Packed in a cardboard box (BX)
- Pin header can be coded
