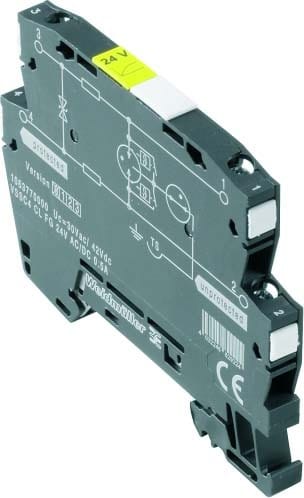

Weidmuller - VSSC4 CL 24VAC/DC 0.5A - 1063730000
/ 10 each
£59.08
Delivery
Essential specifications
Nominal voltage AC - 24...24 V
Nominal voltage DC - 34...34 V
Max. continuous voltage AC - 30 V
Max. continuous voltage DC - 42 V
Nominal discharge surge current (8/20) - 2.5 kA
Packaging
1 each
GTIN
4032248829088
Supplier Ref
1063730000
Manufacturer Ref
1063730000
Commercial Reference
1063730000
Nominal voltage AC:
24...24 V
Nominal voltage DC:
34...34 V
Max. continuous voltage AC:
30 V
Max. continuous voltage DC:
42 V
Nominal discharge surge current (8/20):
2.5 kA
Nominal load current:
0.5 A
Voltage protection level core/core:
918 V
Frequency:
3.4...3.4 MHz
Limiting frequency:
3.4 MHz
Mounting method:
DIN rail (top hat rail) 35 mm
Connection 1:
Clamp
Pro-active thermo-control:
no
With remote signalling contact:
no
Signalling at the device:
None
Explosion-tested version:
yes
Surge voltage arrester (data networks/MCR-technology), Surge protection for measurement and control, analogue, Number of signals: 1, AC/DC, 24 V, 34 V
- Overvoltage coupling along the conductor path may disturb or destroy sensitive signal inputs. It is important to provide protection in the immediate vicinity of I&C devices. Weidmüller's broad product range for the I&C
- sector offers products in a 2-piece, pluggable design and modular terminals for tension clamp or screw connection.
- These products are suitable for both binary and analogue signals. Weidmüller also offers other designs with integrated components such as gas discharge tubes or varistors. VARITECTOR stands for flexible and variable surge protection by Weidmüller, tested according to product standard IEC61643-21. The VARITECTOR series can be used in applications according to IEC
- 61643-22 / VDE 0845-3 for classes C1, C2, C3 and D1. The VARITECTOR SPC, SSC and MCZ OVP product families optimally combine electrical and mechanical properties. Size and easy handling play an important role.
- This surge protection is suited for confined spaces in industrical and process automation as well as in building automation applications.
