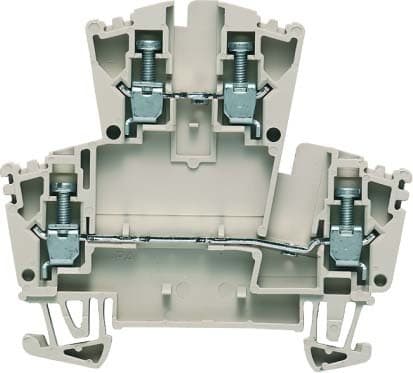

Weidmuller - WDK 2.5/D - 1023200000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

10 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Type of component:

Diode

Explosion-tested version 'Ex e':

no

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...2.5 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Rated voltage:

400 V

Number of levels:

2

Internally connected levels:

no

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

5.1 mm

Depth:

69.5 mm

End plate required:

yes

Colour:

Beige
