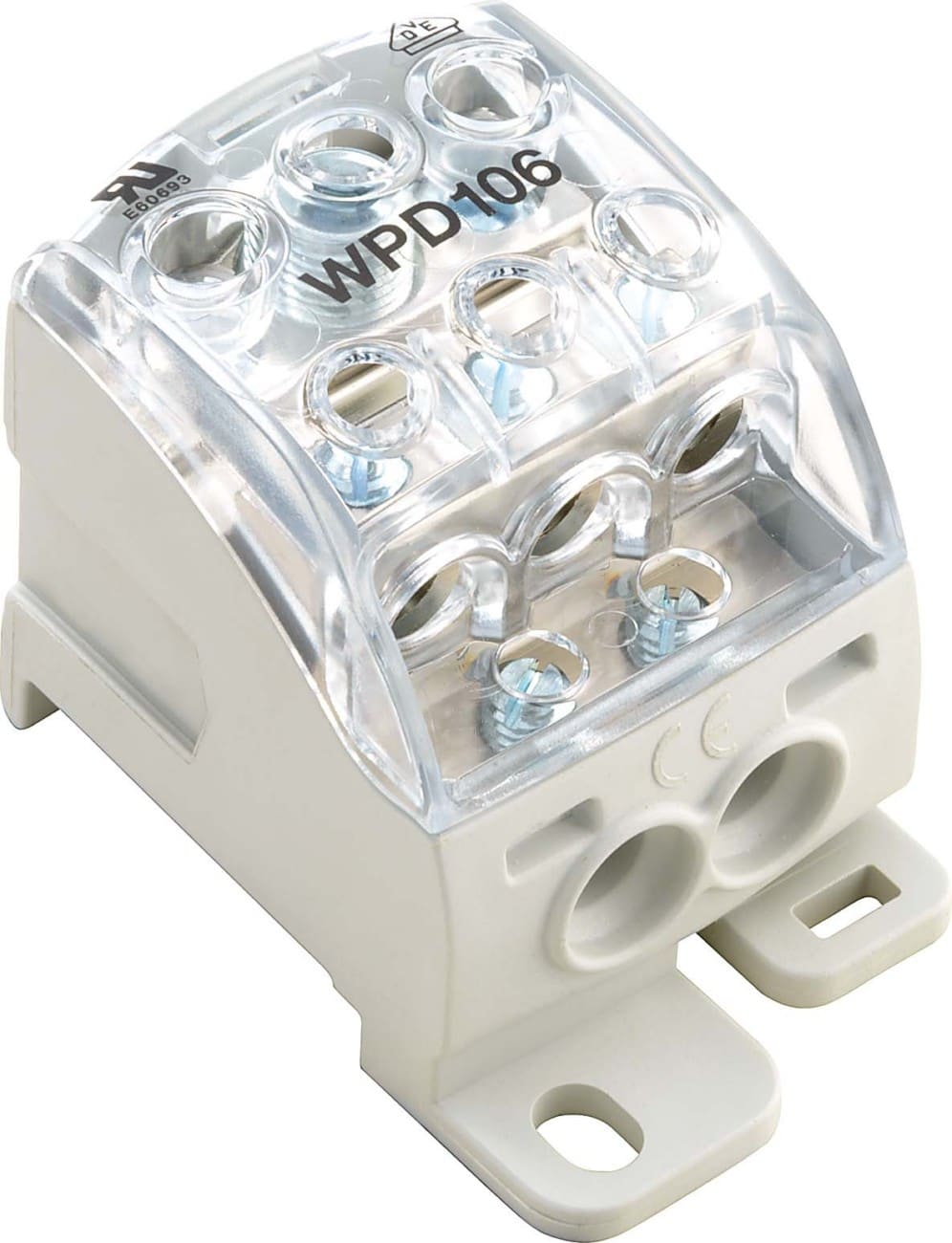

Weidmuller - WPD 106 1X70/2X25+3X16 GY - 1562210000
£28.09
/ each
£28.09
1
Delivery
Number of available items for delivery:0
Essential specifications
Rated current In - 192 A
Type of electrical connection 1 - Screw connection
Number of clamp positions per level - 2
Mounting method - DIN rail (top hat rail) 35 mm
Number of levels - 1
Packaging
1 each
GTIN
4050118385281
Supplier Ref
1562210000
Manufacturer Ref
1562210000
Commercial Reference
1562210000
Rated current In:
192 A
Type of electrical connection 1:
Screw connection
Number of clamp positions per level:
2
Mounting method:
DIN rail (top hat rail) 35 mm
Number of levels:
1
Material insulation body:
Thermoplastic
Operation temperature:
-50...130 °C
Width:
41 mm
Depth:
74.5 mm
End plate required:
no
Colour:
Grey
Internally connected levels:
yes
Potential distributor terminal, Screw connection, 192 A, No. of poles: 1, TS 35, Light Grey
- Optimised to guarantee both convenience and space gains, and ensures a secure and convenient connection at the power feed-in.
