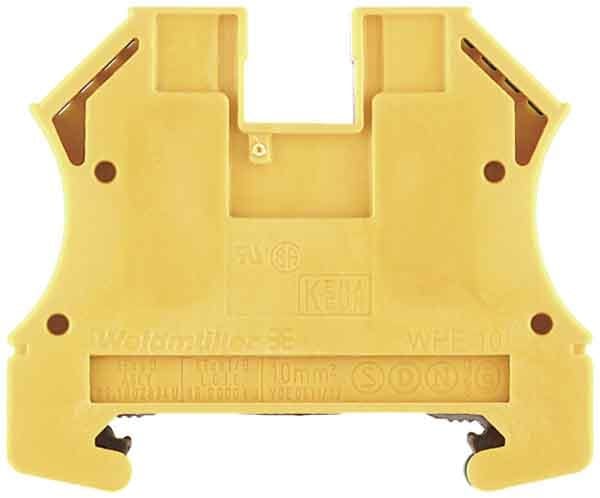

Weidmuller - WPE 10 - 1010300000
/ each
£2.96
Delivery
Essential specifications
PEN function possible - no
Connectable conductor cross section fine-strand without cable end sleeve - 1.5...16 mm²
Type of electrical connection 1 - Screw connection
Number of levels - 1
Number of clamp positions per level - 2
Packaging
1 each
GTIN
4008190031251
Supplier Ref
1010300000
Manufacturer Ref
1010300000
Commercial Reference
1010300000
PEN function possible:
no
Connectable conductor cross section fine-strand without cable end sleeve:
1.5...16 mm²
Type of electrical connection 1:
Screw connection
Number of levels:
1
Number of clamp positions per level:
2
Connectable conductor cross section fine-strand with cable end sleeve:
1.5...16 mm²
Connectable conductor cross section solid-core:
1.5...16 mm²
Connectable conductor cross section multi-wired:
1.5...16 mm²
Type of electrical connection 2:
Screw connection
Mounting method:
DIN rail (top hat rail) 35 mm
Material insulation body:
Thermoplastic
Operation temperature:
-60...130 °C
Width:
9.9 mm
Depth:
46.5 mm
End plate required:
no
Colour:
Green/yellow
PE terminal, Screw connection, 10 mm², 1000 V, Number of connections: 2, Number of levels: 1, green / yellow
- Klippon® Connect with clamping yoke Technology.
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. Klippon® Connect provides a proven response to a range of different requirements.
