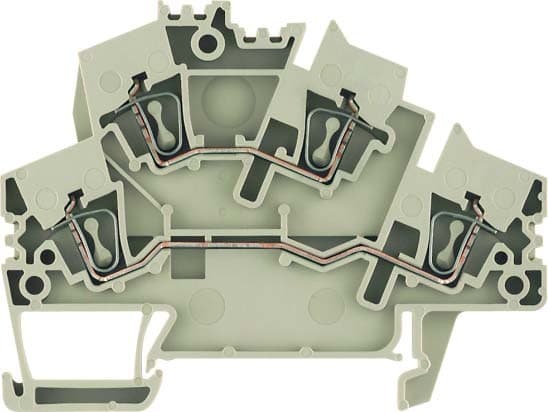

Weidmuller - ZDK 2.5-2 - 1790990000
/ 50 each
£1.68
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 0.5...2.5 mm²
Rated current In - 24 A
Type of electrical connection 1 - Spring clamp connection
Number of clamp positions per level - 2
Mounting method - DIN rail (top hat rail) 35 mm
Packaging
1 each
GTIN
4032248222940
Supplier Ref
1790990000
Manufacturer Ref
1790990000
Commercial Reference
1790990000
Connectable conductor cross section fine-strand without cable end sleeve:
0.5...2.5 mm²
Rated current In:
24 A
Type of electrical connection 1:
Spring clamp connection
Number of clamp positions per level:
2
Mounting method:
DIN rail (top hat rail) 35 mm
Connectable conductor cross section fine-strand with cable end sleeve:
0.5...2.5 mm²
Connectable conductor cross section solid-core:
0.5...4 mm²
Connectable conductor cross section multi-wired:
0.5...2.5 mm²
Rated voltage:
800 V
Type of electrical connection 2:
Spring clamp connection
Number of levels:
2
Material insulation body:
Thermoplastic
Operation temperature:
-50...120 °C
Width:
5.1 mm
Depth:
72.5 mm
Explosion-tested version 'Ex e':
yes
End plate required:
yes
Colour:
Beige
Multi-tier modular terminal, Tension clamp connection, 2.5 mm², 800 V, 24 A, Number of levels: 2, Dark Beige
- Spring connection with tension clamp Technology.
- Tension clamp technology is a universal contact system for all common conductor connection types. Its fantastic level of flexibility makes the tension clamp a profitable alternative connection.
