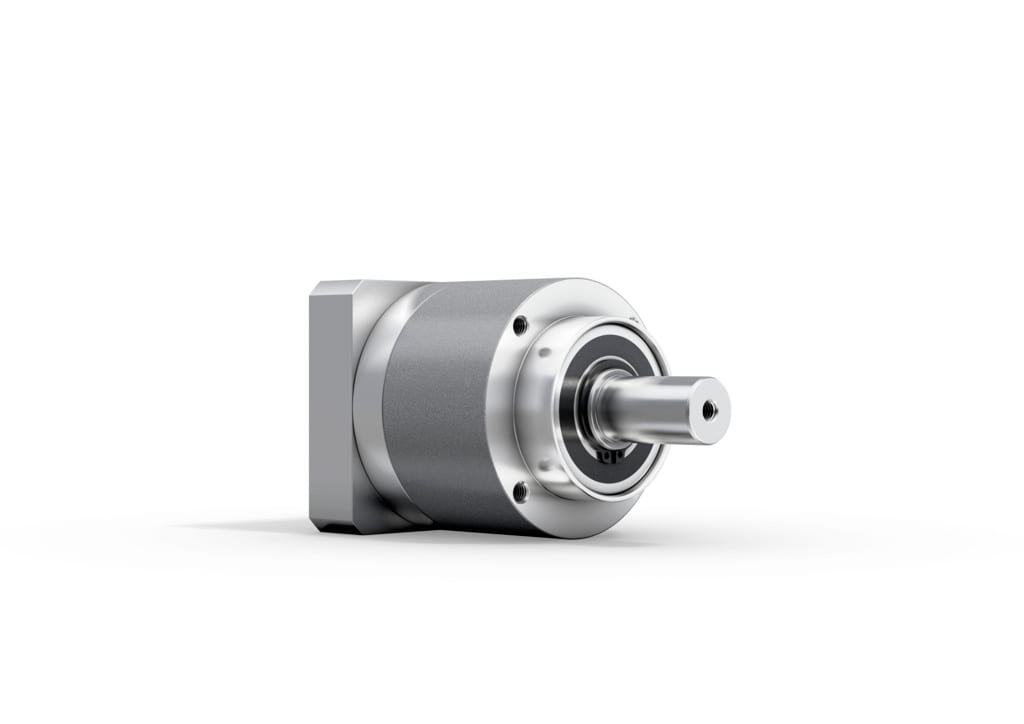

Wittenstein - Alpha Basic Line Planetary Gearbox Standard Ratio: 100:1 - CPS025S-MF2-100-1E1-1S
Unable to display price, please contact your sales representative
1
Delivery
Number of available items for delivery:0
Essential specifications
IP-rating - IP65
Nominal torque - 45 Nm
Operation temperature - -15...40 °C
Shaft end type - Key
Packaging
1 each
GTIN
Supplier Ref
CPS025S-MF2-100-1E1-1S
Manufacturer Ref
CPS025S-MF2-100-1E1-1S
Commercial Reference
CPS025S-MF2-100-1E1-1S
IP-rating:
IP65
Nominal torque:
45 Nm
Operation temperature:
-15...40 °C
Shaft end type:
Key
Alpha Basic Line - Planetary gearbox
Characteristic: Standard
Gearbox variant: Motor-mounted
Gearbox model: Standard
Ratio: 100:1
Output shape: Shaft with key
Motor connection: Clamping hub socket (19mm).
