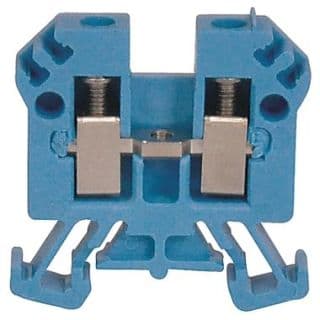

Allen-Bradley - 2.5 Square mm Miniature Terminal Block - 1492-WM3-B
/ 50 each
£1.99
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 0.5...2.5 mm²
Rated current In - 24 A
Type of electrical connection 1 - Screw connection
Number of clamp positions per level - 2
Mounting method - DIN rail (top hat rail) 35 mm
Packaging
1 each
GTIN
10662468235300
Supplier Ref
1492-WM3-B
Manufacturer Ref
1492-WM3-B
Commercial Reference
1492-WM3-B
Connectable conductor cross section fine-strand without cable end sleeve:
0.5...2.5 mm²
Rated current In:
24 A
Type of electrical connection 1:
Screw connection
Number of clamp positions per level:
2
Mounting method:
DIN rail (top hat rail) 35 mm
Rated voltage:
500 V
Type of electrical connection 2:
Screw connection
Number of levels:
1
Material insulation body:
Thermoplastic
Operation temperature:
-40...90 °C
Width:
5 mm
Depth:
29 mm
Explosion-tested version 'Ex e':
yes
End plate required:
yes
Colour:
Blue
IEC Terminal Block, One-Circuit Mini Feed-Through Block, 2.5 mm (# 24 AWG - # 12 AWG), Standard Feedthrough, Blue,
- Time-proven termination method
- UL tested for multiple wire terminations per connection point (up to five on certain terminal blocks)
- 1492-W family offers basic feed-through and grounding terminal blocks in a space-saving design
Allen-Bradley
Explore more products in this series
