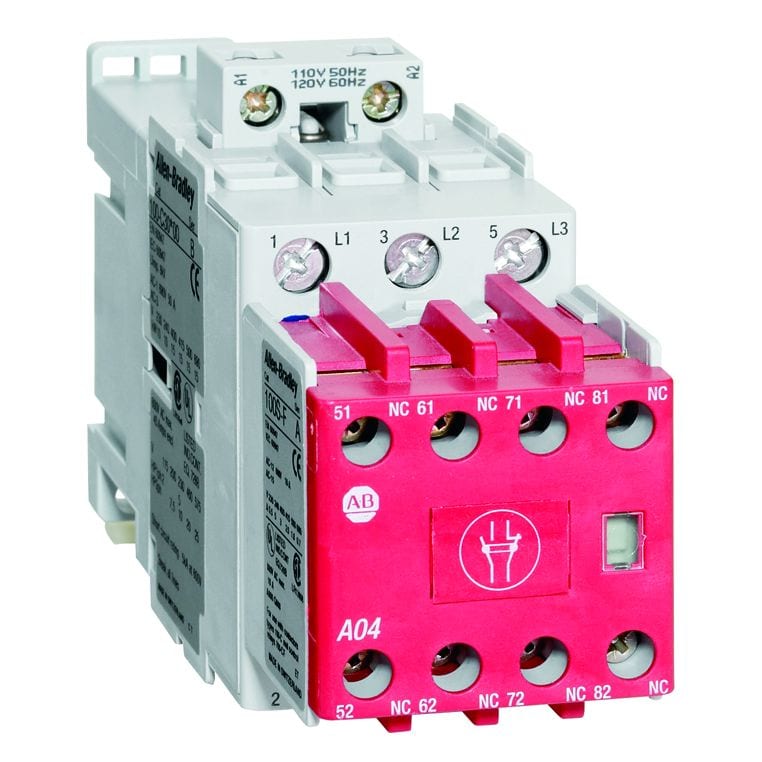

Allen-Bradley - 23 A Safety Contactor - 100S-C23KJ304BC

Rated control supply voltage Us at AC 50HZ:

20...426.4 V

Voltage type for actuating:

AC

Rated operation power at AC-3, 400 V:

11 kW

Number of normally closed contacts as main contact:

1

Number of main contacts as normally open contact:

3

Connection type main current circuit:

Screw connection

Rated operation current Ie at AC-1, 400 V:

32 A

Rated operation current Ie at AC-3, 400 V:

23 A

Number of auxiliary contacts as normally open contact:

0

Number of auxiliary contacts as normally closed contact:

4

Suitable for DIN installation panels:

no
