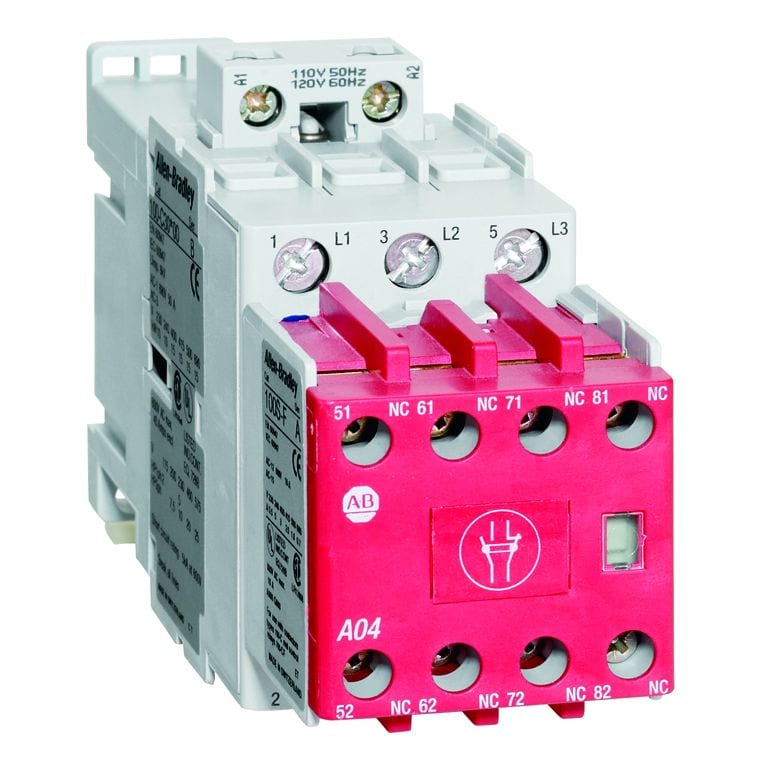

Allen-Bradley - 43 A SAFETY CONTACTOR - 100S-C43D04C
/ each
£238.79
Delivery
Essential specifications
Rated control supply voltage Us at AC 50HZ - 93.5...121 V
Voltage type for actuating - AC
Rated operation power at AC-3, 400 V - 22 kW
Rated control supply voltage Us at AC 60HZ - 120...120 V
Number of normally closed contacts as main contact - 0
Packaging
1 each
GTIN
10611320223597
Supplier Ref
100S-C43D04C
Manufacturer Ref
100S-C43D04C
Commercial Reference
100S-C43D04C
Rated control supply voltage Us at AC 50HZ:
93.5...121 V
Voltage type for actuating:
AC
Rated operation power at AC-3, 400 V:
22 kW
Rated control supply voltage Us at AC 60HZ:
120...120 V
Number of normally closed contacts as main contact:
0
Number of main contacts as normally open contact:
3
Connection type main current circuit:
Screw connection
Rated operation current Ie at AC-1, 400 V:
85 A
Rated operation current Ie at AC-3, 400 V:
43 A
Number of auxiliary contacts as normally open contact:
0
Number of auxiliary contacts as normally closed contact:
4
Suitable for DIN installation panels:
no
100S-C Safety Contactor, 43A, Line Side, 110V 50Hz / 120V 60Hz, 3 N.O., 0 N.O. 4 N.C.
- Red contact housing for easy identification
- AC and DC operating coils
- Complete range of accessories
- Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
- 100S-C/104S-C Safety Contactors
- Mechanically linked N.C. auxiliary contacts
- Front-mounted auxiliary contacts
- AC and DC operating coils
- SUVA Third-Party certification
