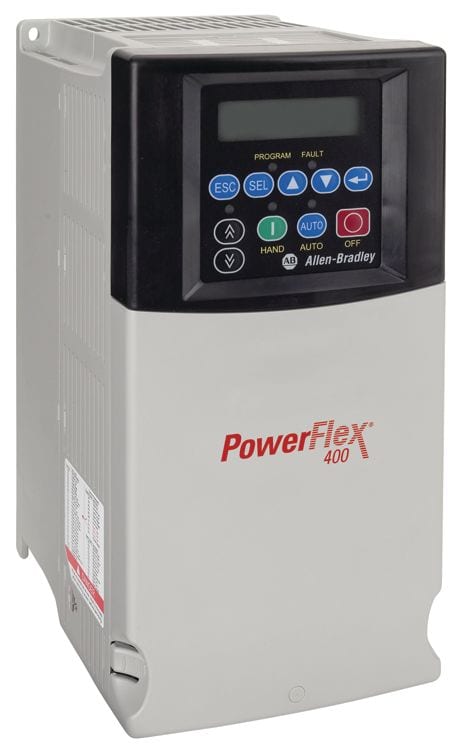

Allen-Bradley - AC DRIVE P/FLEX400, 60A, 30KW, 3ph - 22C-D060A103
/ each
£4,859.32
Delivery
Essential specifications
Mains voltage - 380...480 V
Max. output frequency - 320 Hz
Nominal output current I2N - 60 A
Max. output at quadratic load at rated output voltage - 30 kW
IP-rating - IP20
Packaging
1 each
GTIN
00820919234170
Supplier Ref
22C-D060A103
Manufacturer Ref
22C-D060A103
Commercial Reference
22C-D060A103
Mains voltage:
380...480 V
Max. output frequency:
320 Hz
Nominal output current I2N:
60 A
Max. output at quadratic load at rated output voltage:
30 kW
IP-rating:
IP20
Mains frequency:
50/60 Hz
Number of phases input:
3
Number of phases output:
3
Application in domestic- and commercial area permitted:
yes
Height:
436.2 mm
Width:
250 mm
Depth:
206.1 mm
PowerFlex 400, Fan & Pump Drive. 480 VAC, 3 PH. 60 Amps. 40 HP,Frame Size D, IP30 (NEMA 1 / UL Type 1). Fixed Keypad. RS485 (without Brake IGBT)
- PowerFlex 400 AC Drives are optimized for control of commercial and industrial fans and pumps.
- Built-in features such as purge and damper input provide a cost-effective solution for speed control in a broad range of variable torque fan and pump applications.
- NEMA/UL Type 1, 12, 3R, and 4 enclosures.
- Flange-mount and panel-mount options.
- V/Hz control, slip compensation, and PID control.
- Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus RTU, Metasys N2, and Apogee FLN P1-plant floor network protocols.
- Supports Drive Serial Interface (DSI) communication modules.
- Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features.
- Configuration and programming via integral keypad, remote keypad, or DriveTools SP software.
