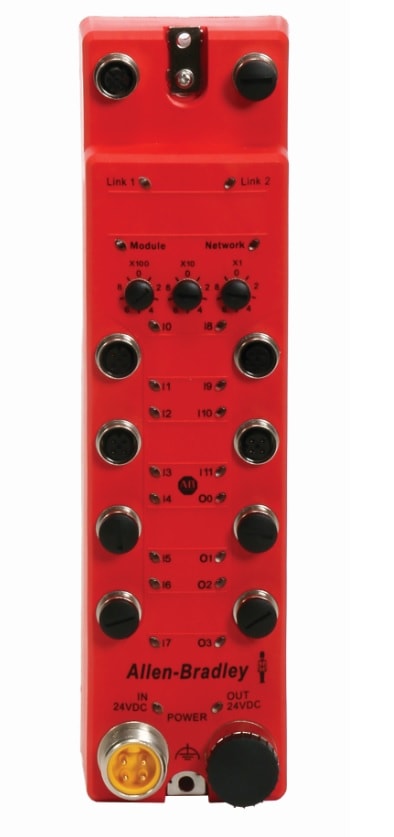

Allen-Bradley - ArmorBlock Guard I/O 16 In/16 Out Module - 1732ES-IB16
/ each
£1,521.67
Delivery
Essential specifications
Number of digital inputs - 16
Number of digital outputs - 0
Type of digital output - None
Permitted voltage at input - 24...24 V
Type of input voltage - DC
Packaging
1 each
GTIN
00889508136097
Supplier Ref
1732ES-IB16
Manufacturer Ref
1732ES-IB16
Commercial Reference
1732ES-IB16
Number of digital inputs:
16
Number of digital outputs:
0
Type of digital output:
None
Permitted voltage at input:
24...24 V
Type of input voltage:
DC
Short-circuit protection, outputs available:
yes
Number of HW-interfaces industrial Ethernet:
2
Number of HW-interfaces RS-232:
0
Number of HW-interfaces USB:
0
Number of HW-interfaces other:
0
Supporting protocol for TCP/IP:
no
Supporting protocol for MODBUS:
no
Supporting protocol for Data-Highway:
no
Supporting protocol for DeviceNet:
no
Supporting protocol for EtherNet/IP:
yes
Supporting protocol for DeviceNet Safety:
no
Supporting protocol for other bus systems:
no
IO link master:
no
IP-rating:
IP67
Type of electric plug connection:
Screw connection
Rail mounting possible:
no
Wall mounting/direct mounting:
yes
Front installation possible:
yes
Width:
259 mm
Height:
70 mm
Depth:
69 mm
ArmorBlock. EtherNet/IP Safety Input Module 16 Inputs, IP67 Rating
- Available with water- and corrosion-proof plastic and nickel-plated aluminum sealed housing
- Offers rating for IP69K and NEMA 4X (when marked) for use without an enclosure
- Includes LEDs for module and/or channel level alarms and diagnostics which can reduce machine downtime
- Provides efficient installation and replacement without having to rewire which can reduce wiring errors
- Includes Add-On Profiles in the Studio 5000™ Logix Designer application
- 1732D ArmorBlock DeviceNet I/O Blocks
- Offers 8 or 16 points per block
- Offers 1732DS ArmorBlock Guard I/O modules for safety applications
- Includes network-powered I/O circuits on some blocks
- 1732E ArmorBlock EtherNet/IP I/O Blocks
- Includes slim and standard form factors
- Offers 4, 8, or 16 points per block
- Offers 1732ES ArmorBlock Guard I/O modules for safety applications
- Supports DLR topology and power daisy chain on selected modules
- Includes high-speed time-stamping inputs and scheduled output modules for demanding and high-speed applications
- Offers high accuracy and fast conversion rate analog modules
- Includes QuickConnect block with less than 250ms power up time for tool changer application
- Supports connection to IO-Link enabled devices with the IO-Link master module
- 1732D/E Armor WeldBlock I/O Blocks
- Resists the effects of weld slag and magnetic fields found in close proximity to weld heads
- Offers 16 points per block
- Includes QuickConnect block with less than 250ms power-up time for tool changer application
