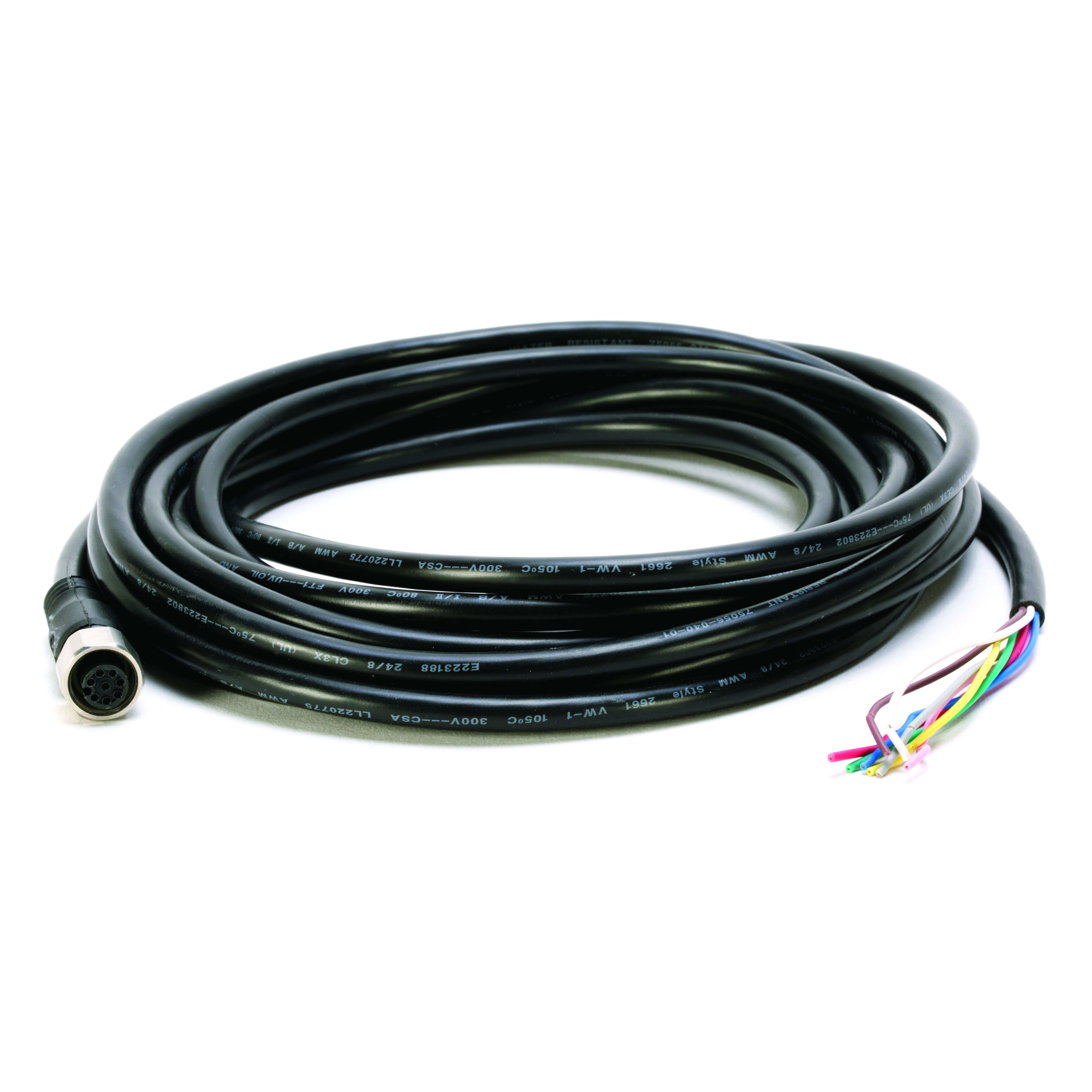

Allen-Bradley - CORDSET STRAIGHT FEMALE M23 2M - 889M-F12AH-2
/ each
£101.53
Delivery
Essential specifications
Number of poles - 12
Type of electrical connection, field-sided - Other
Type of plug-in contact, field sided - Female (bus)
Cable length - 2 m
Material of cable sheath - Polyvinyl chloride (PVC)
Packaging
1 each
GTIN
10611320804796
Supplier Ref
889M-F12AH-2
Manufacturer Ref
889M-F12AH-2
Commercial Reference
889M-F12AH-2
Number of poles:
12
Type of electrical connection, field-sided:
Other
Type of plug-in contact, field sided:
Female (bus)
Cable length:
2 m
Material of cable sheath:
Polyvinyl chloride (PVC)
Positioning cable feed, field-sided:
Straight
Type of electrical connection, box-sided:
Free conductor end
Positioning cable feed, box-sided:
Other
Colour cable sheath:
Yellow
Shielded:
no
Cable type:
Multi-core
Operating Temperature Range:
-20...105 °C
Rated current In:
6 A
Rated voltage:
300 V
M23, Female, Straight, 12-Pin, PVC Cable, Yellow, Unshielded, IEC Color Coded, No Connector, 2 meter (6.56 feet), 18AWG one twisted pair
- The 889M M23 Cordsets and Patchcords provide secure connections for high pin-count field devices using M23 style connectors.
- They are available in straight or right-angled configurations and are physically keyed to prevent wiring mishaps.
- The highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals.
