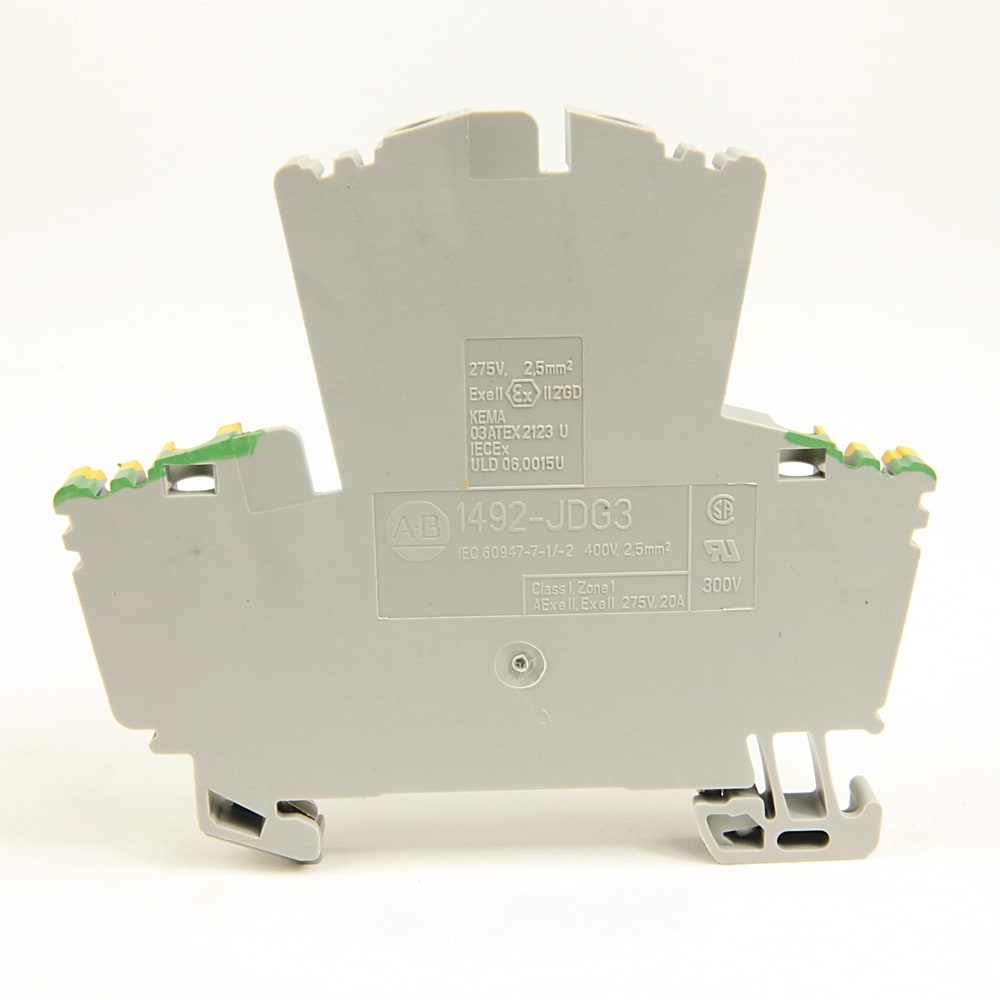

Allen-Bradley - DOUBLE STACK BLOCK - 1492-JDG3C

Connectable conductor cross section fine-strand without cable end sleeve:

2.5...120 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

2

Number of clamp positions per level:

2

Connectable conductor cross section solid-core:

2.5...120 mm²

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

5.1 mm

Depth:

69 mm

End plate required:

yes

Colour:

Green/yellow
