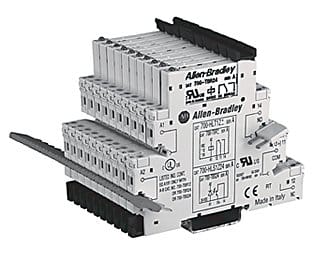

Allen-Bradley - ELECTROMECHANICAL TERMINAL BLOCK 110v - 700-HLT12U1
/ 10 each
£26.91
Delivery
Essential specifications
Type of electric plug connection - Screw connection
Complete with socket - no
Rated control supply voltage Us at AC 50HZ - 110...125 V
Voltage type for actuating - AC/DC
With LED indication - no
Packaging
1 each
GTIN
10662074283801
Supplier Ref
700-HLT12U1
Manufacturer Ref
700-HLT12U1
Commercial Reference
700-HLT12U1
Type of electric plug connection:
Screw connection
Complete with socket:
no
Rated control supply voltage Us at AC 50HZ:
110...125 V
Voltage type for actuating:
AC/DC
With LED indication:
no
Number of contacts as change-over contact:
2
Type of switch contact:
Single contact
Nominal current:
10 A
IP-rating:
IP20
Width:
88 mm
Height:
76 mm
Depth:
6.2 mm
Electromechanical Relay Output. DPDT (2 C/O). w/ Screw Terminals. 110/125V AC/DC. Touch Safe Terminal Construction
- The 700-HL Terminal Block Relays work in a variety of high-density isolation and interposing applications.
- The thin per-pole interface (6.2 mm wide) and quick connections help reduce installation costs.
- Optional leakage current suppression circuit design addresses nuisance coil turn-on or contact non-drop-out concerns for TRIAC controller outputs.
- The spring-clamp terminal base option is ideal for applications that are subject to vibration
- Provides built-in retainer clip and snap-in marker lever.
