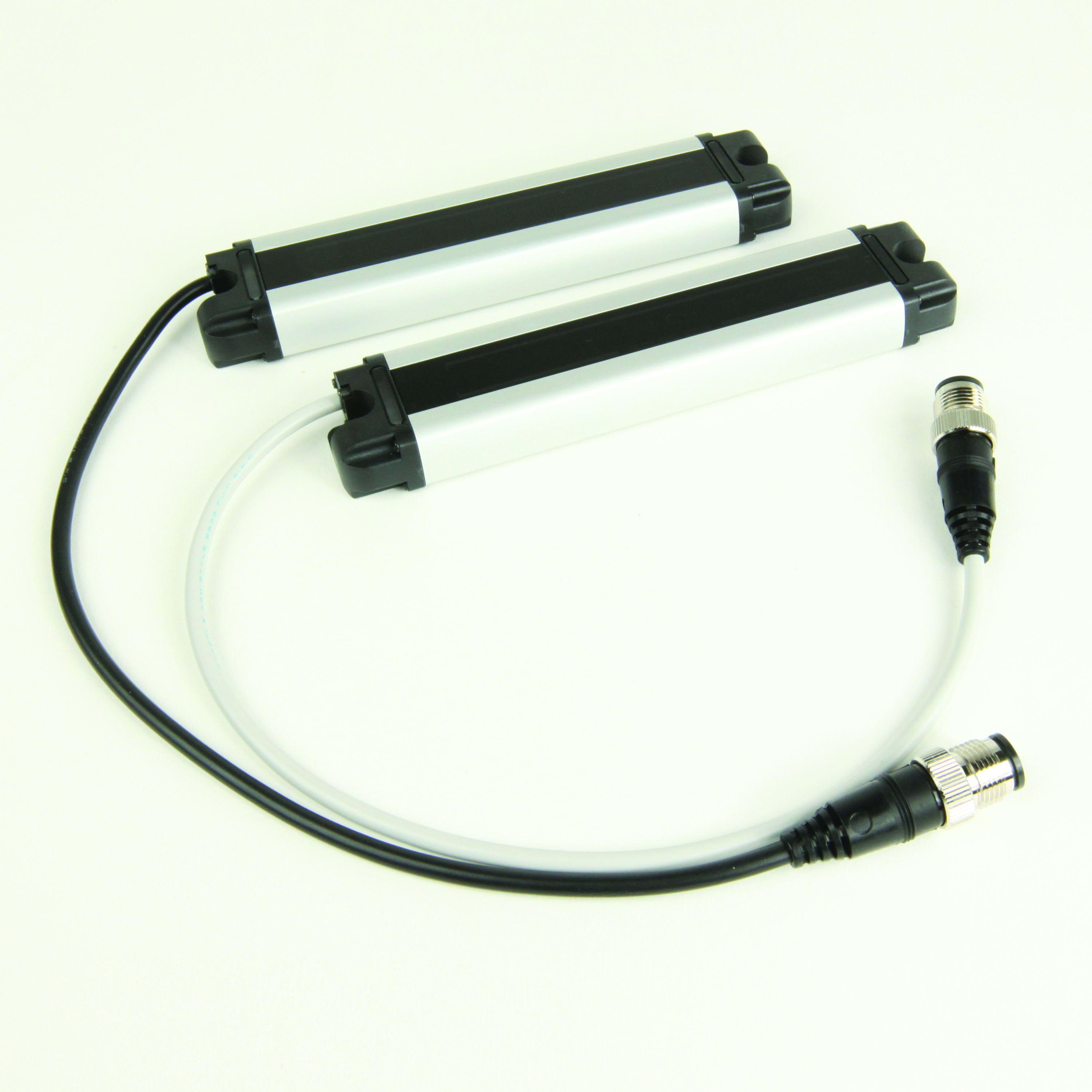

Allen-Bradley - Light Array,45AST Photoelectric, Infrare - 45AST-1JPB1-F4

Transmission range of the safety field:

2 m

Rated control supply voltage Us at DC:

24...24 V

Wavelength of the sensor:

860 nm

IP-rating:

IP67

Number of semiconductor outputs with signalling function:

1

Number of contact energized outputs with signalling function:

0

Number of protected semiconductor outputs:

1

Number of protected contact energized outputs:

0

Type of switching output of the OSSD:

PNP

Type of electric plug connection:

Connector M12

Width sensor:

34 mm

Height of sensor:

100 mm

Length of sensor:

15 mm

Explosion safety category for gas:

None

Explosion safety category for dust:

None

Cascadable:

no

Scope of delivery of the one-way system:

Transmitter and receiver

Max. output current at protected output:

100 mA

Ambient temperature:

-5...55 °C

With muting function:

no

Override possible:

no

Time of reaction:

4 ms

Resolution of the light curtain:

15 mm

Reduced resolution:

no

Switching voltage of OSSD at state 'high':

24 V

Safety field height:

50 mm

Voltage type:

DC

With beam coding:

no

Clock control possible:

no

With monitoring function downstream switching devices:

no

With restart blockage:

no

Suitable for safety functions:

no
