Allen-Bradley - PRESSURE CONTROL - 836T-T302JX25
£897.37
/ each
£897.37
1
Delivery
Number of available items for delivery:0
Essential specifications
Rated voltage Ue at AC 50 Hz - 600...600 V
Rated operation current Ie at AC-1, 400 V - 5 A
Packaging
1 each
GTIN
10662073293757
Supplier Ref
836T-T302JX25
Manufacturer Ref
836T-T302JX25
Commercial Reference
836T-T302JX25
Rated voltage Ue at AC 50 Hz:
600...600 V
Rated operation current Ie at AC-1, 400 V:
5 A

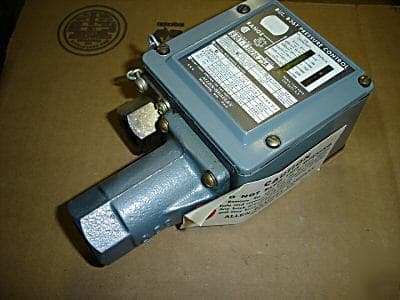

836T Pressure Controls - Traditional Machine Tool, T - Style Pressure Control. 3000 psi. Enclosure Type 1, 4 and 13 Industrial use.. S.P.D.T. , 2 - circuit contact block. X25, Special Diaphragm Assembly (Piston Type Pressure Control)
- Bulletin 836T Externally Adjustable Electromechanical Pressure Controls meet the traditional requirements of the transportation and machine tool industries. Proven dependability and construction make this line of pressure controls well-suited for these and other rugged applications.
- Pressure Controls
- Externally adjustable ranges from 30 in. Hg vacuum to 5000 psi
- Externally adjustable differential from 1.5...3000 psi
- Bellows type available in copper alloy or stainless steel
- Piston type actuators available with or without seal
- 2-circuit or 4-circuit electrically isolated contacted blocks
- Available in Type 1, 4 & 13, 4X, and 7 & 9, 4 & 13 combination enclosures
- Pressure Difference Controls
- 1...70 psi adjustable difference range
- Adjustable differential from 1...50 psi
