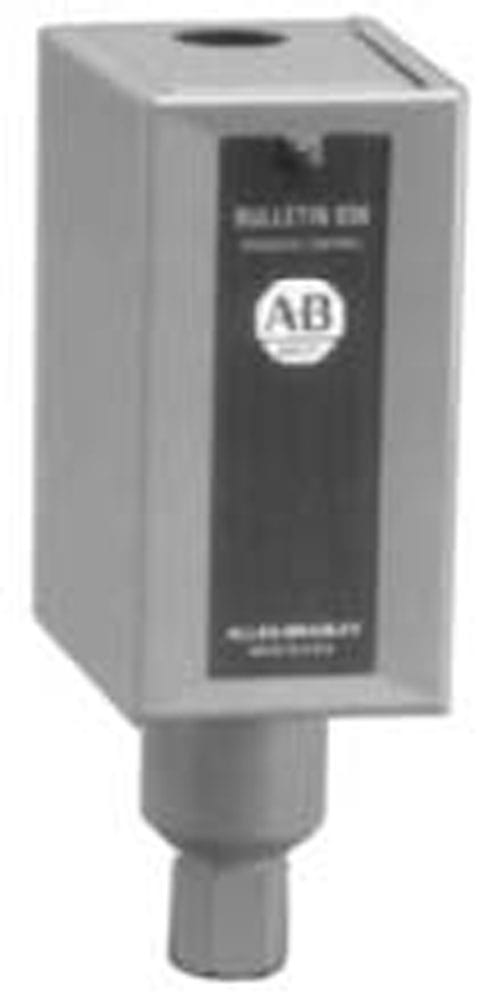

Allen-Bradley - PRESSURE CONTROL NEMA 1 - 836-C7A

Engaging pressure:

0.13...0.13 bar

With manual on/off switch:

no

Electronic version:

no

IP-rating:

IP2X

Suitable as guard:

yes

Suitable as 2-point controller:

no

Max. operating pressure:

300 hPa

Switch off pressure:

10.34...10.34 bar

Pressure-switching differential:

1.72 bar

Bursting pressure:

25.85 bar

Medium temperature:

-30...66 °C

Rated voltage Ue at AC 50 Hz:

24...24 V

Rated voltage Ue at DC:

230...230 V

Number of auxiliary contacts as normally open contact:

1

Number of auxiliary contacts as normally closed contact:

0

Number of auxiliary contacts as change-over contact:

0

Type of electric plug connection:

Screw connection

Number of normally closed contacts as main contact:

1

Number of main contacts as normally open contact:

0

Adjustable current range:

3...5 A

With hand operation:

no
