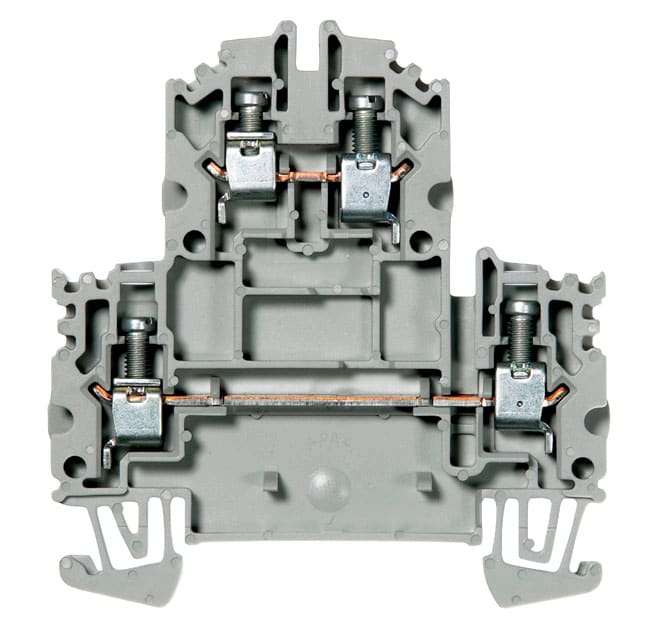

Allen-Bradley - TERMINAL BLOCK - 1492-JD4-G

Connectable conductor cross section fine-strand without cable end sleeve:

4...4 mm²

Rated current In:

32 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Rated voltage:

800 V

Type of electrical connection 2:

Screw connection

Number of levels:

2

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

6.1 mm

Depth:

60.7 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Green
