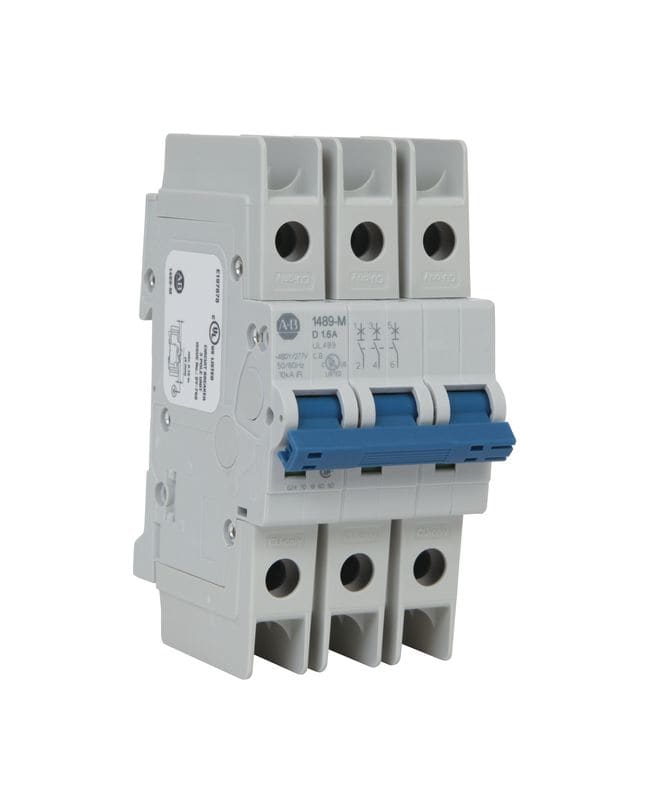

Allen-Bradley - UL489 8A Miniature Circuit Breaker - 1489-M3C080

Release characteristic:

C

Number of poles (total):

3

Rated current:

8 A

Concurrently switching N-neutral:

no

Built-in depth:

79.38 mm

Rated voltage:

400 V

Voltage type:

AC

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V:

15 kA

Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V:

15 kA

Frequency:

50...60 Hz

Over voltage category:

3

Pollution degree:

3

Additional equipment possible:

yes

IP-rating:

IP20
