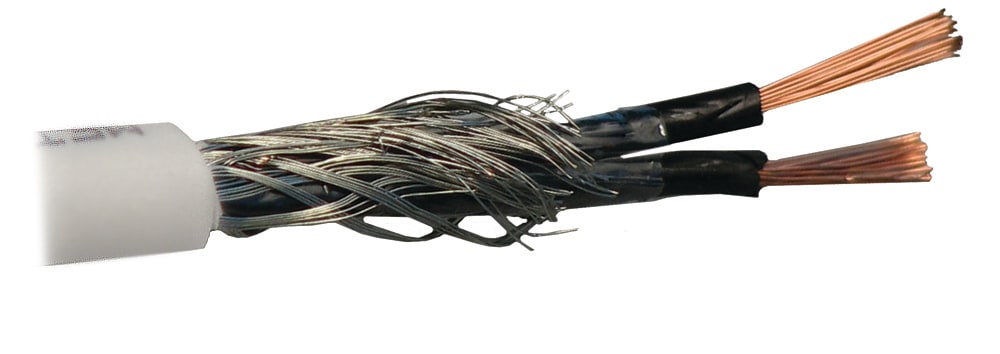

Eland - 3CORE 2.5MM CY "V0303041GR000" - CY3C2.5
/ 100 pieces
£1.98
Delivery
Essential specifications
Nominal cross section conductor - 2.5 mm²
Conductor category - Class 5 = flexible
Total number of cores - 3
Outer sheath material - Polyvinyl chloride (PVC)
Core insulation - Polyvinyl chloride (PVC)
Packaging
1 piece
GTIN
Supplier Ref
CY3C2.5
Manufacturer Ref
CY3C2.5
Commercial Reference
CY3C2.5
Nominal cross section conductor:
2.5 mm²
Conductor category:
Class 5 = flexible
Total number of cores:
3
Outer sheath material:
Polyvinyl chloride (PVC)
Core insulation:
Polyvinyl chloride (PVC)
Core identification:
Numbers
Outer sheath colour:
Grey
Installation Temperature Range:
-5...70 °C
Operating Temperature Range:
-30...80 °C
Nominal voltage U:
500 V
VERIFLEX CY-JZ (YSLCY). 3x2.50mm². 300/500V. V0303041GR000. Number coded cores. 100M reel.
- Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.
- Suitable for flexible use when temporarily moved, and in conditions of medium
- mechanical stress. Can be used outdoors when protected, and in dry or damp conditions indoors.
- Veriflex CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
