Eland - 4CORE 1.5MM CY "V0304031GR000 " - CY4C1.5
/ 100 pieces
£1.64
Delivery
Essential specifications
Nominal cross section conductor - 1.5 mm²
Conductor category - Class 5 = flexible
Total number of cores - 4
Outer sheath material - Polyvinyl chloride (PVC)
Core insulation - Polyvinyl chloride (PVC)
Packaging
1 piece
GTIN
Supplier Ref
CY4C1.5
Manufacturer Ref
CY4C1.5
Commercial Reference
CY4C1.5
Nominal cross section conductor:
1.5 mm²
Conductor category:
Class 5 = flexible
Total number of cores:
4
Outer sheath material:
Polyvinyl chloride (PVC)
Core insulation:
Polyvinyl chloride (PVC)
Core identification:
Numbers
Outer sheath colour:
Grey
Installation Temperature Range:
-5...70 °C
Operating Temperature Range:
-30...80 °C
Nominal voltage U:
500 V

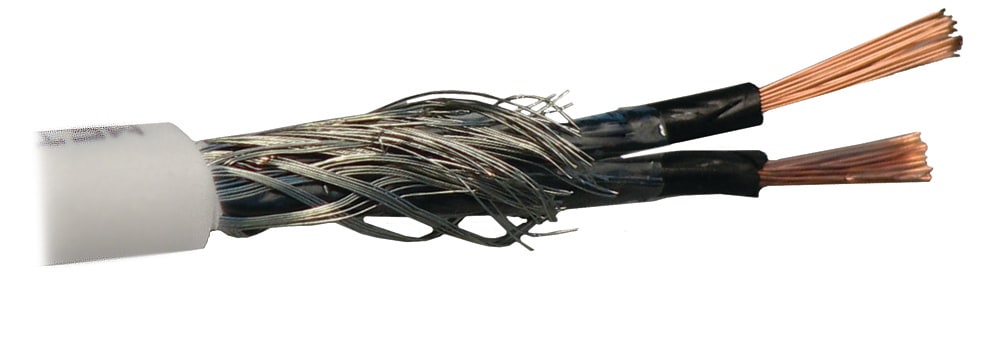

VERIFLEX CY-JZ (YSLCY). 4x1.50mm². 300/500V. V0304031GR000. Number coded cores. 100M reel.
- Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.
- Suitable for flexible use when temporarily moved, and in conditions of medium
- mechanical stress. Can be used outdoors when protected, and in dry or damp conditions indoors.
- Veriflex CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
