Eland - SY 7CORE 2.5MM "V0207041CL000" - SY7C2.5
£404.43
/ 100 pieces
£4.04
100
Delivery
Number of available items for delivery:0
Essential specifications
Nominal cross section conductor - 2.5 mm²
Conductor category - Class 5 = flexible
Total number of cores - 7
Outer sheath material - Polyvinyl chloride (PVC)
Core insulation - Polyvinyl chloride (PVC)
Packaging
1 piece
GTIN
Supplier Ref
SY7C2.5
Manufacturer Ref
SY7C2.5
Commercial Reference
SY7C2.5
Nominal cross section conductor:
2.5 mm²
Conductor category:
Class 5 = flexible
Total number of cores:
7
Outer sheath material:
Polyvinyl chloride (PVC)
Core insulation:
Polyvinyl chloride (PVC)
Core identification:
Numbers
Operating Temperature Range:
-15...70 °C
Nominal voltage U:
500 V

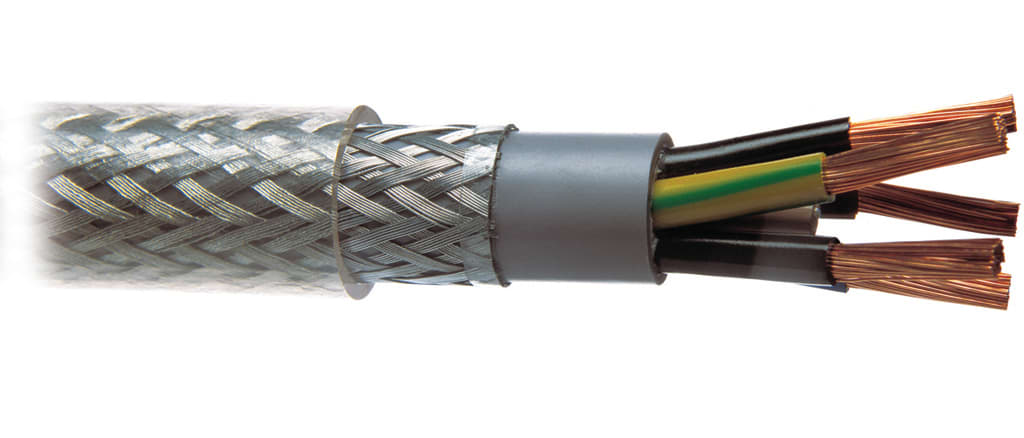

VERIFLEX SY-JZ (YSLYSY). 7x2.50mm². 300/500V. V0207041CL000. Number coded cores. 100M reel.
- Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.
- Suitable for flexible use in conditions of light mechanical stress.
- Can be used outdoors when protected, and in dry or moist conditions indoors.
- The braided screen offers the best possible protection against mechanical damage and offers a level of electro-magnetic shielding.
- The galvanized coating helps protect against corrosion.
- Veriflex SY Cables are not suitable for direct connection to the public mains supply.
- Veriflex SY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.
