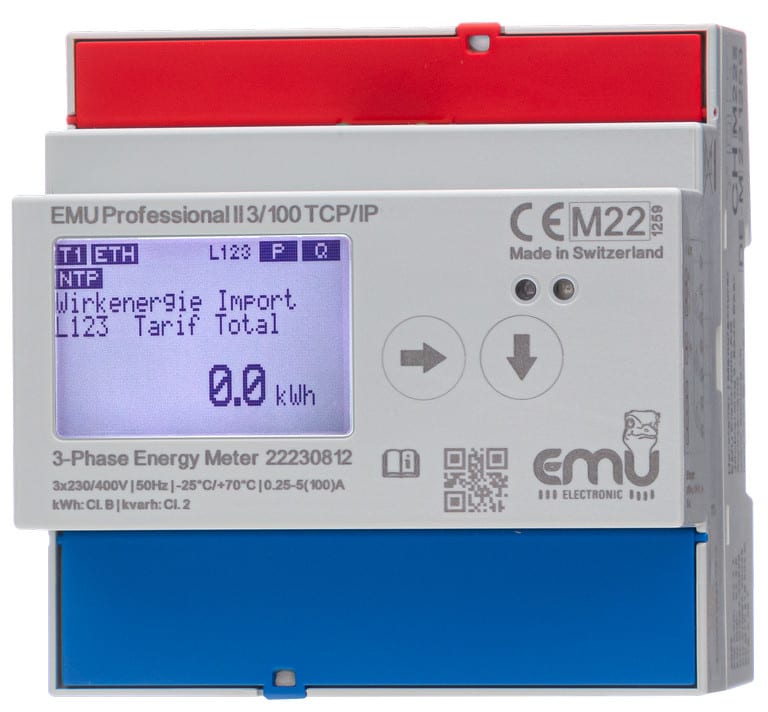

EMU Metering - EMU Professional II 3/100 TCP/IP Electricity Meter Direct Measurement DINrail MID Certified - P20A000T

Electronic three-phase electricity meter for DINrail mounting. Detection of active and reactive energy, consumption and production (import / export), power factor on all phases. Also approved for Photovoltaics and Windparks. Direct measurement up to 100A. TCP/IP communication and webserver.

• Bidirectional three-phase power meter with LAN TCP/IP interface

• Remote reading via Modbus TCP and API

• Webserver access protection with password

• Logging of different measurement values and export to CSV or via API

• Memory depth of over 3 years at a 15-minute interval

• 3x230/400V

• Direct connection up to 100 A

• MID B+D, for billing purposes

• Accuracy class B (1%)
